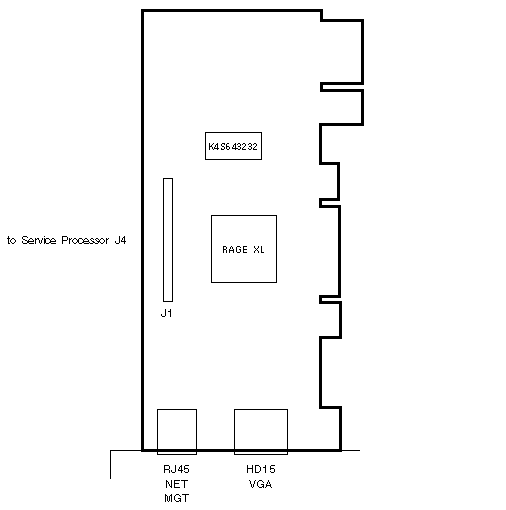

Graphics Board

Sun Fire X4500

501-7160 541-0597
Graphics Board
Codename Diamond Peak
L
Assembly/FRU
501-7160 + 501-7383
L
511-1045 541-2963
Graphics Board
FAB 270-7160-03
L
Assembly/FRU
511-1045 + 501-7383
L


Notes

  1. Install the Graphics and Service Processor Assembly in X4500 Slot 3.
  2. FRU 541-0597 includes Graphics Board 501-7160 and Service Processor 501-7383.
  3. FRU 541-2963 includes Graphics Board 511-1045 and Service Processor 501-7383.

Reference

  1. Sun Fire X4500 Server Installation Guide, 819-4358.
  2. Sun Fire X4500/X4540 Server Documentation.
