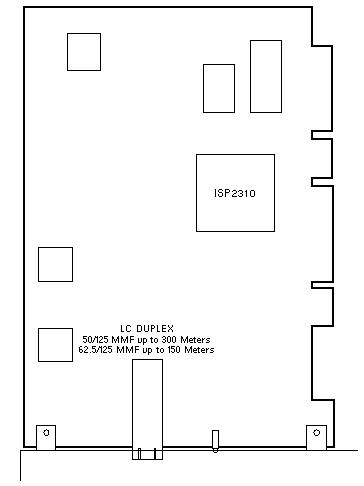

2Gigabit/Sec PCI Single FC Host Adapter

Codename: Amber2

Additional Supported Systems

Tape Libraries:

StorageTek SL24, SL48

Options 6767 / SG-XPCI1FC-QF2

375-3102
QLogic QLA2310F-SUN 3.3/5V 32/64Bit 33/66MHz

Fibre Cables

OPTION	FRU PART #	DESCRIPTION
X9720A	130-4723	SC-SC Fibre Channel Cable Coupler
X9721A	537-1036	0.4 Meter LC-SC Fibre Channel Cable
X9722A	537-1035	2 Meter LC-SC Fibre Channel Cable
X9723A	537-1033	5 Meter LC-SC Fibre Channel Cable
X9724A	537-1034	15 Meter LC-SC Fibre Channel Cable
X9732A	537-1041	CBL, 2M, FC, LC-LC, MM,1.6 PLENUM
X9733A	537-1042	CBL, 5M, FC, LC-LC, MM,1.6 PLENUM
X9734A	537-1043	CBL, 15M, FC, LC-LC, MM,1.6 PLENUM

Notes

1. The minimum OS is Solaris 8 4/01 for fully functional support of all associated software.
2. Booting from a disk attached via this adapter in Solaris x64/x86 Operating Environment is not supported. No BIOS is installed on the adapter.
3. Product Note lists the required packages and patches, including those needed for installation on Solaris 2.6 and 7.

References

1. Sun StorageTek 2 Gb Fibre Channel PCI-X Enterprise HBA, QLogic, Single Port Documentation.
