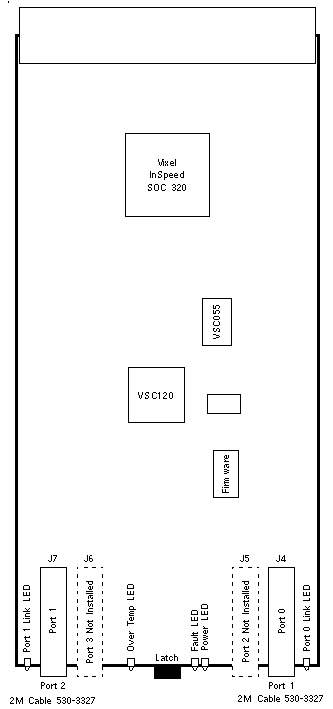

FC-AL Expansion I/O Module

Disk Arrays: StorEdge 5310 NAS, 6130

StorEdge 5310 FC-AL EU
StorEdge CSM100

Option XTACSM1-IOM-FC

375-3218
LSI Logic Assembly P11562
MAC Addr 00:A0:B8:nn:nn:nn

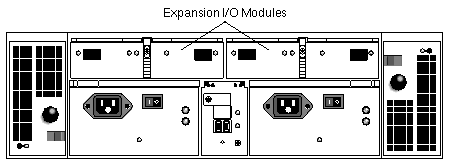

FC Expansion Tray (Rear View)

Note: The I/O Modules are installed upside down in the Expansion Tray.

StorEdge 5310 Codename: Mustang
StorEdge 6130 Codename: Treefrog Sophomore

Notes

  1. The sheetmetal canister is labeled Port 1 and Port 2.

References

  1. Sun StorEdge 6130 Array Documentation.
