RAID Controller

Disk Arrays:

Storage 6580, 6780

371-4370	371-4371	371-4372	371-1799

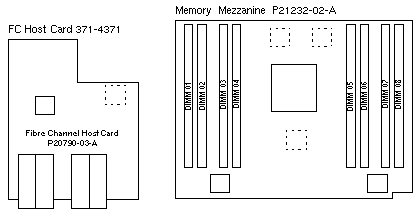

4GB USB Flash L	4Gbps Fibre Channel Host Card P20790-03-A L	1GB DIMM L	4Gbps SFP

No Sun Part Number	No Sun Part Number	375-3626	375-3628

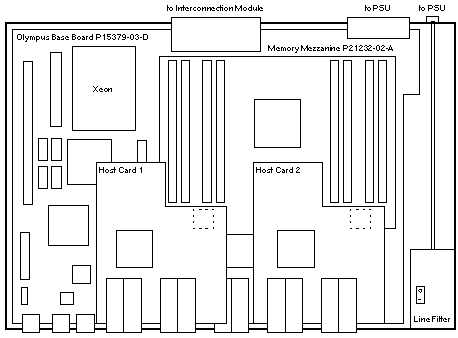

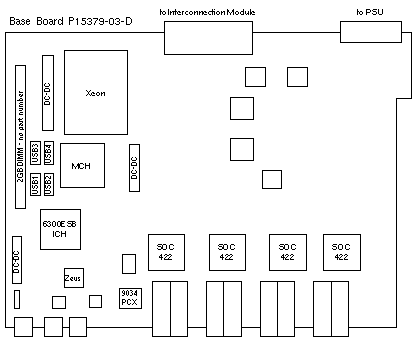

Base Board P15379-03-D	Memory Mezanine P21232-02-A	6780 Controller Assembly Base + Mezzanine	6580 Controller Assembly Base + Mezzanine

RAID Controller

Disk Arrays:

Storage 6580, 6780

371-4370	375-3627	371-4372	371-4582

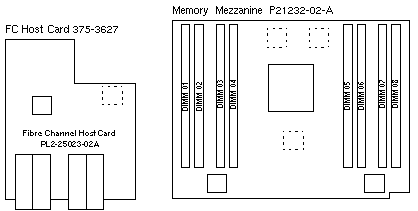

4GB USB Flash L	8Gbps Fibre Channel Host Card L	1GB DIMM L	8Gbps SFP

No Sun Part Number	No Sun Part Number	375-3626	375-3628
Base Board P15379-03-D	Memory Mezanine P21232-02-A	6780 Controller Assembly Base + Mezzanine	6580 Controller Assembly Base + Mezzanine

RAID Controller

Disk Arrays:

Storage 6580, 6780

540-7798	540-7805	540-7806
8 × 1GB DIMMs Two 4GB USB Flash Two FC Host Cards Storage 6780 L	4 × 1GB DIMMs One 4GB USB Flash One FC Host Card Storage 6780 L	4 × 1GB DIMM One 4GB USB Flash One FC Host Card Storage 6580 L

540-7935	540-7936	540-7937
8 × 1GB DIMMs Two 4GB USB Flash Two 8Gbps FC Host Cards Storage 6780 L	4 × 1GB DIMMs One 4GB USB Flash One 8Gbps FC Host Card Storage 6780 L	4 × 1GB DIMM One 4GB USB Flash One 8Gbps FC Host Card Storage 6580 L

Upper Controller A

Lower Controller B

RAID Controller

Disk Arrays:

Storage 6580, 6780

371-4881	371-3627	371-4879	371-4880	371-4582
8GB USB Flash L	8Gbps Fibre Channel Host Card L	2GB DIMM L	4GB DIMM L	8Gbps SFP

No Sun Part Number	No Sun Part Number	375-3626	375-3628
Base Board P15379-03-D	Memory Mezanine P21232-02-A	6780 Controller Assembly Base + Mezzanine	6580 Controller Assembly Base + Mezzanine

RAID Controller

Disk Arrays:

Storage 6780

542-0320	542-0322
8 × 2GB DIMMs Four 4GB USB Flash Two 8Gbps FC Host Cards StorageTek 6780	4 × 4GB DIMMs Four 8GB USB Flash One 8Gbps FC Host Card StorageTek 6780
