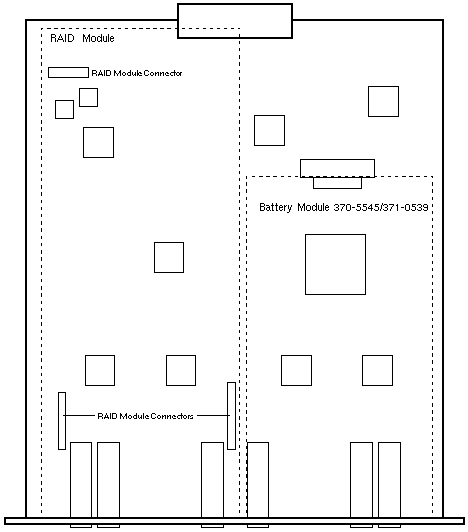

RAID I/O Module

Disk Arrays: StorEdge 3510

Option XTA-3510-CTRL-1G
Option XTA-3510-CTRL-1GZ

370-5537 371-0532

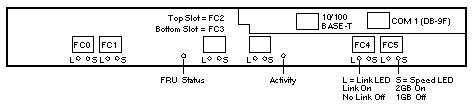

Rear View
.4 Meter LC-SC Cable 537-1036, Option 9721
2 Meter LC-SC Cable 537-1035, Option 9722
5 Meter LC-SC Cable 537-1033, Option 9723
15 Meter LC-SC Cable 537-1034, Option 9724
.8 Meter LC-LC Cable 537-1057, Option 9730
2 Meter LC-LC Cable 537-1041, Option 9732
5 Meter LC-LC Cable 537-1042, Option 9733
15 Meter LC-LC Cable 537-1043, Option 9734

RAID Module Top Side
Dot Hill 66-00000056 (370-5537)

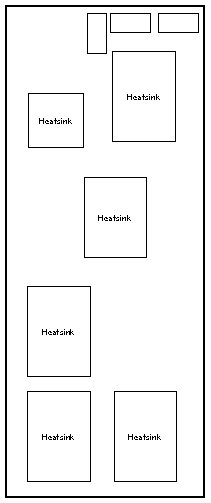

RAID Module Bottom Side
Dot Hill 66-00000056 (370-5537)

StorEdge 3510 Codename: Minnow 2U FC

Notes

  1. XTA-3510-CTRL-1G <=595-6578-03 does not include Shortwave SFP Transceivers.
  2. XTA-3510-CTRL-1G 595-6578-04 includes two Shortwave SFP Transceivers.

References

  1. Sun StorEdge 3510 FC Array Documentation.
