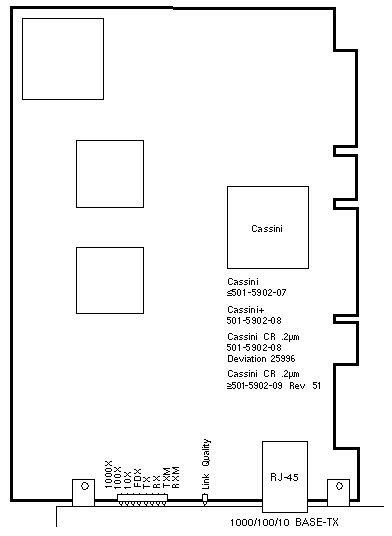

GigaSwift Ethernet 1.0 UTP

Codename: Cassini

Workstations: Ultra 5, 10, 60, 80
Sun Blade 100, 150, 1000, 1500, 2000, 2500
Servers: Enterprise 250, 450, 220R, 420R
Enterprise 3x00, 4x00, 5x00, 6x00
Sun Fire 280R, 12K, 15K, E20K, E25K
Sun Fire V480, V490, V880, V890
Sun Fire 4800, 4810, 6800, E2900, E4900, E6900
Sun Fire V1280, V120, V210, V240, V250, V440, V20z, V40z
Telco: Netra 20, 120, 240, 440, 1280
Netra T1, t1120/1125, t1400/1405

Options 1150 / 3150

501-5902
Unshielded Twisted Pair
3.3/5V   32/64Bit   33/66MHz

Notes

  1. The minimum operating system is Solaris 2.6.
  2. Do Not install GigaSwift Ethernet with Ultra 5/10 PCI graphics options.
  3. Do Not install GigaSwift Ethernet and ESI/P on the same Ex000 PCI I/O Board.
  4. The <=501-5902-07 installed on Sun Blade 1000/2000 System Board 501-6230-07 or Sun Fire V880/V880z Motherboard 501-6323-03 requires Solaris 8 Patch >=111883-12 or Solaris 9 Patch >=112817-04 for Schizo 2.4.
  5. Use of 1000mbps forced mode is not supported.

References

  1. GigaSwift Ethernet Adapter Installation and User's Guide, 806-2989.
  2. Sun GigaSwift Ethernet UTP/MMF Adapter Documentation.
  3. Release Notes for GigaSwift Ethernet Adapter, 806-2990.
