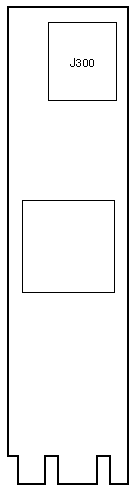

Dual 10-Gigabit Ethernet Fabric Expansion Module

Codename: Foxxy

Option X1029A-Z

501-7961

Notes

  1. The minimum Solaris operating systems is Solaris 10 8/07.
  2. The Dual 10GbE Fabric Expansion Module supports two 10-Gigabit Ethernet interfaces with Multi-Fabric Network Express Module Option X4236A.
  3. The minimum version of the Sun Blade X6250 is 540-7254-04 (375-3501-05).
  4. About 180 Sun Blade X6250 boards built on 06/09/08 were relabeled to the new part number but were not reworked.
    The changes required to support the Dual 10GbE Fabric Expansion Module are on 540-7254-05 (375-3501-06).

Blade Notes

  1. Sun Blade T6320 requires FEM X4822A for 10GbE connectivity to NEM X4236A.
  2. Sun Blade X6250 requires FEM X4822A for 10GbE connectivity to NEM X4236A.
  3. Sun Blade X6450 requires FEM X4822A for 10GbE connectivity to NEM X4236A.
  4. Sun Blade X6450 540-7595 (X6450-AA) is not supported.
    Sun Blade X6450 540-7821 (X6450-AB) is required.

References

  1. Sun Dual 10GbE Fabric Expansion Module Documentation.



Dual 10-Gigabit Ethernet Fabric Expansion Module

Codename: Niantic

Option X4871A-Z
Option X4871A-Z-N

375-3648
Intel Sunshine Key
Product Code 3753648

Notes

  1. The minimum Solaris operating systems is Solaris 10 5/09.
  2. The Solaris device driver is bundled in Solaris 10 10/09.
  3. Documentation is not included.

10Gigabit Ethernet Notes

  1. Sun Blade T6340 requires FEM X4871A-Z for 10GbE connectivity to NEM X2073A.
  2. Sun Blade X6270 requires FEM X4871A-Z for 10GbE connectivity to NEM X2073A.
  3. Sun Blade T6320 requires FEM X4835A or X4871A-Z for 10GbE connectivity to NEM X2073A..
  4. T4-1B requires FEM 4871A-Z for 10GbE connectivity to NEM 2073A.

References

  1. Sun Dual 10Gbe PCIe 2.0 Fabric Expansion Module Documentation.
