disktower 1000

587 597 772 773
disktower 1000
8 535MB Disks
2 Disk Cards
2.1GB Disk Card
4 535MB Disks
w/o disktower 1000
disktower 1000
8 1.05GB Disks
2 Disk Cards
4.2GB Disk Card
4 1.05GB Disks
w/o disktower 1000



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

CODE PART # DESCRIPTION
-
-
1
2
3
4
5
6
7
-
-
-
NS
NS
540-2273
340-2684 [F]
540-2477
340-2943
300-1103 [F]
330-1469
330-1470 [F]
330-1589
370-1547 [F]
None
None
None
240-2083
340-1590

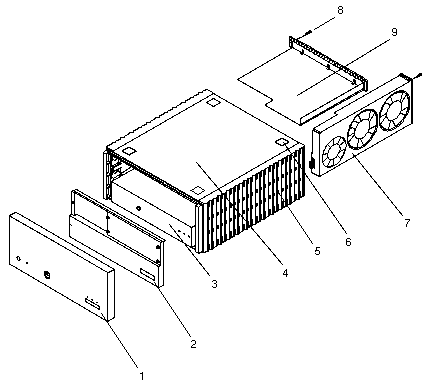

Chassis Assembly
Chassis
Front Bezel Assembly
Front EMI Cover
650 Watt Power Supply
Top and Bottom Cover
Side Cover
Cover Plug
Fan Tray Assembly, +12VDC, 4 Amps
6" Fans, 60 CFM @ 1850 RPM each
6" Fans, 80 CFM @ 2950 RPM each
4.7" Fan, 45 CFM @ 2300 RPM
M6 × 14 mm Screw, Foot
Foot
8
9
9
-
-
9
-
-
240-1530 [F]
540-2388 [F]
501-2242
501-2066 [F]
540-2403 [F]
501-2589
501-2588 [F]
540-2568 [F]
M3 × 6 mm Screw
Empty Slot Filler Panel
2.1GB SCSI Disk Card with 4× 535MB Disks
SCSI Disk Card FRU without Disks
535MB Disk Drive FRU
Wide SCSI Disk Card FRU with 4× 1.05GB Disks
Wide SCSI Card FRU without Disks
1.05GB Disk Drive FRU
NS 150-1785 [F] Single-Ended Active Terminator, HD50
NS 150-2267 [F] Single-Ended Forced Perfect Terminator, HD68
NS 260-6233 [F] Sun Logo
NS 260-7326 disktower 1000 Nameplate

801-5116 disktower 1000 System Service Manual
