StorEdge UniPack

DSK010A-9G DSK010C-9G
9.1GB Disk
7200 RPM
9.1GB Disk
10000 RPM



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

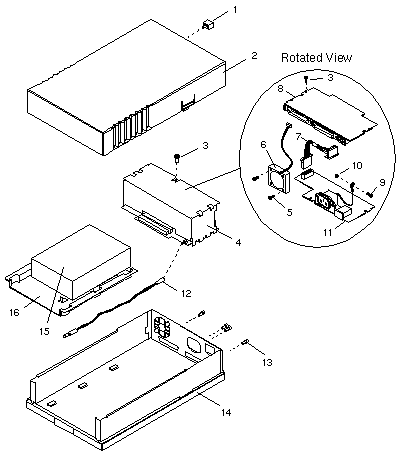

CODE PART # DESCRIPTION
-
-
599-2229
599-2325
9.1GB 7200 RPM Disk StorEdge UniPack
9.1GB 10000 RPM Disk StorEdge UniPack
-
-
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
595-4726 [F]
599-2237
540-1982
540-3731
240-1530 [F]
540-3732
240-2246
240-2294
370-1986 [F]
530-2180 [F]
501-4823 [F]
240-1434
240-1373
300-1282 [F]
530-2183 [F]
240-1926 [F]
540-3730
Disk Drive Enclosure FRU without Disk Drive
Disk Drive Enclosure without Disk Drive
Lockbox
Disk Drive Cover Assembly
M3 × 6 mm Screw
Disk Drive Power Supply Assembly
M3 × 25 mm Screw (obsolete)
M3 × 25 mm Pan-Head Screw
Fan
Disk Drive DC Power Cable
Disk Drive Ultra SCSI Interface Card
M4 × 10 mm Screw
M4 Nut
30 Watt Power Supply
LED Cable
#4-40M/2-56F Jackscrew
Base Assembly
15
16
-
-
-
540-3734
340-3222
370-3404
370-3413 [F]
370-3595 [F]
9.1GB 7200 RPM Disk Drive Assembly
Mounting Bracket
9.1GB Disk, IBM DDRS-39130 (removed by WO_12576)
9.1GB Disk Drive, Fujitsu MAB3091SC
9.1GB Disk Drive, Seagate ST39173WC
15
16
-
-
540-4304
340-3222
390-0009 [F]
390-0037 [F]
9.1GB 10000 RPM Disk Drive Assembly
Mounting Bracket
9.1GB Disk Drive, Seagate ST39103LC
9.1GB Disk Drive, Seagate ST39204LC
NS 261-5678 Sun Logo
NS 530-2383 [F] External SCSI Cable, HD68 to HD68, 80 cm

802-3229
805-3941
SPARCstorage UniPack Hard Drive Replacement
StorEdge UniPack User's Guide
