StorEdge MultiPack

SG-XDSK020A-8G SG-XDSK040A-16G SG-XDSK060A-25G
2 4.2GB Disks
7200 RPM
4 4.2GB Disks
7200 RPM
6 4.2GB Disks
7200 RPM



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

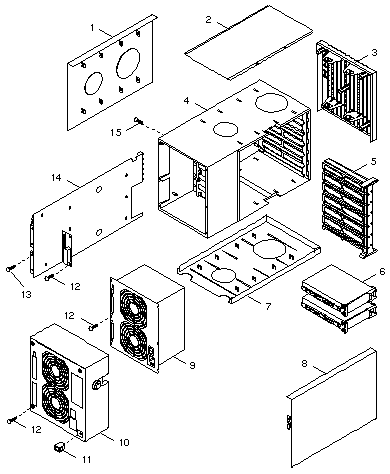

CODE PART # DESCRIPTION
1 330-1957 Side Cover
2 330-1956 Top Cover
3 540-2798 Front Cover Assembly
4 540-3397 Chassis Assembly
5 540-3399 Spacer Assembly
6
-
-
-
-
-
-
540-2938 [F]
240-2304
370-2367 [F]
370-2809
370-3403
370-3412 [F]
540-3024
4.2GB 7200 RPM Disk Drive Assembly
#6-32 × 3/16" Torx Screw
4.2GB Disk Drive, Seagate ST34371WC
4.2GB Disk Drive, Quantum VK45J05
4.2GB Disk Drive, IBM DDRS-34560
4.2GB Disk Drive, Fujitsu MAB3045SC
1" Spud Mounting Bracket
7
8
540-3398
540-3401
Base Assembly with UltraSCSI Silkscreen
Door Assembly with UltraSCSI Silkscreen
9 300-1330 [F] 185 Watt Power Supply
10
11
12
13
14
15
540-2788
540-2789
240-2283
240-2180
501-4747 [F]
240-2282
Rear Cover Assembly
Lockbox
M3 × 8 mm Screw
#4-40 Jack Screw
6-Slot Ultra SCSI Backplane
M3 × 14 mm Screw
NS 150-2267 [F] Forced Perfect Terminator, HD68
NS 330-1966 [F] Key
NS 530-2383 [F] External SCSI Cable, HD68 to HD68, 80 cm
NS 540-3423 [F] Cover Kit/FRU with Front, Top, Side, and Door

805-1667
805-3954
SPARCstorage MultiPack Service Manual
StorEdge MultiPack User's Guide
