StorEdge MultiPack-FC

SG-XFDSK020C-36G SG-XFDSK060C-109G
2 18.2GB Disks
10000 RPM
6 18.2GB Disks
10000 RPM
SG-XFDSK020E-72G SG-XFDSK060E-218G
2 36.4GB Disks
10000 RPM
6 36.4GB Disks
10000 RPM
SG-XFDSK020C-146G SG-XFDSK060C-438G
2 73.4GB Disks
10000 RPM
6 73.4GB Disks
10000 RPM



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

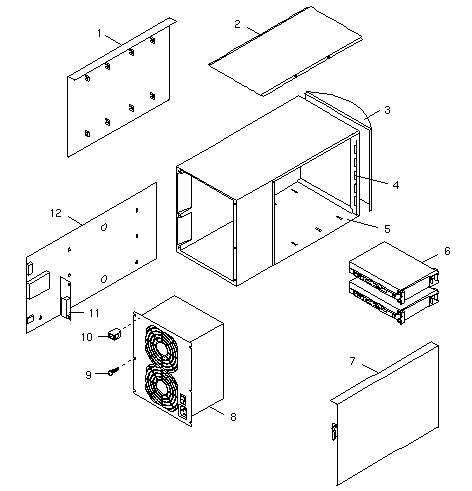

CODE PART # DESCRIPTION
1 330-2964 Right Side Cover
2 330-2962 Top Cover
3 540-4370 Front Bezel
4
-
-
540-4487 [F]
370-4081
530-2888
LED Board and Cable FRU
LED Board
Backplane to LED Board Cable
5
5
540-4369
540-4559 [F]
Chassis Assembly
Chassis FRU with Front, Top, Side, and Door
6
6
6
6
540-4673 [F]
540-4525 [F]
540-4905 [F]
540-5408 [F]
18.2GB 10000 RPM Disk Drive Assembly/FRU
36.4GB 10000 RPM Disk Drive Assembly/FRU
73.4GB 10000 RPM Disk Drive Assembly/FRU
73.4GB 10000 RPM Disk Drive Assembly/FRU
7
NS
540-4352
370-4066
Left Side Door
Lock and Key
8
8
300-1463 [F]
300-1490 [F]
Type A104 185 Watt Power Supply
Type A156 185 Watt Power Supply
9 240-1434 M4 × 8 mm Screw
10 540-1982 Lockbox
11
11
370-4082
330-2969
Backplane Daughter Board
Backplane Daughter Board Bracket
12
-
-
-
540-4486 [F]
150-3379
501-5646
540-4368
Backplane and Drive Cage FRU
Address Switch
6-Slot FC-AL Backplane
3-Drive Cage (×2)
NS 530-2949 [F] HSSDC to HSSDC Cable, 1.0M, Option 6760
NS 530-2950 [F] HSSDC to HSSDC Cable, 3.0M
NS 530-2951 [F] HSSDC to HSSDC Cable, 10.0M, Option 6761
NS 530-3049 HSSDC to DB9 Cable, 5.0M, Option 6716
NS 530-3050 HSSDC to DB9 Cable, 10.0M
NS
-
-
370-2303 [F]
537-1004 [F]
537-1006 [F]
Optional FC-AL SW-GBIC, option X6731A
SC Duplex Cable, 2M, option X973A
SC Duplex Cable, 15M, option X978A

806-3960 MultiPack-FC Installation and Service Manual
