SPARCstorage UniPack

5203 5204 5209 5213
4.2GB Disk
5400 RPM
68-68 Pin Cable
4.2GB Disk
5400 RPM
50-68 Pin Cable
4.2GB Disk
7200 RPM
68-68 Pin Cable
4.2GB Disk
7200 RPM
50-68 Pin Cable
5253 5254
9.1GB Disk
7200 RPM
68-68 Pin Cable
9.1GB Disk
7200 RPM
50-68 Pin Cable



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

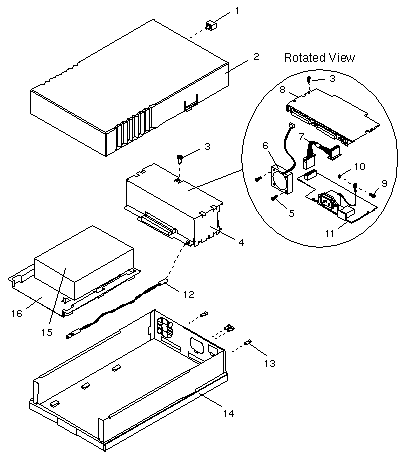

CODE PART # DESCRIPTION
-
-
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
595-3709 [F]
599-2045
540-1982
540-2673
240-1530 [F]
540-2694
240-2246
240-2294
370-1986 [F]
530-2180 [F]
501-2790 [F]
240-1434
240-1373
300-1282 [F]
530-2183 [F]
240-1926 [F]
540-2672
Disk Drive Enclosure FRU without Disk Drive
Disk Drive Enclosure without Disk Drive
Lockbox
Disk Drive Cover Assembly
M3 × 6 mm Screw
Disk Drive Power Supply Assembly
M3 × 25 mm Screw (obsolete)
M3 × 25 mm Pan-Head Screw
Fan
Disk Drive DC Power Cable
Disk Drive SCSI Interface Card
M4 × 10 mm Screw
M4 Nut
30 Watt Power Supply
LED Cable
#4-40M/2-56F Jackscrew
Base Assembly
15
15
15
16
-
-
-
-
-
-
-
540-2754
540-3033
540-3034
340-3222
370-2152 [F]
370-2286 [F]
370-2367 [F]
370-2368 [F]
370-2809
370-2369
370-2370 [F]
4.2GB 5400 RPM Disk Drive Assembly
4.2GB 7200 RPM Disk Drive Assembly
9.1GB 7200 RPM Disk Drive Assembly
Mounting Bracket
4.2GB 5400 RPM Disk, Seagate ST15230WC (obs)
4.2GB 5400 RPM Disk, Seagate ST15230WC
4.2GB 7200 RPM Disk, Seagate ST34371WC
4.2GB 7200 RPM Disk, Fujitsu M2954
4.2GB 7200 RPM Disk, Quantum VK45J05
9.1GB 7200 RPM Disk, Seagate ST19171WC
9.1GB 7200 RPM Disk, Fujitsu M2949
NS 261-5678 Sun Logo
NS 530-1884 [F] External SCSI Cable, HD68 to HD68, 80 cm
NS 530-2383 [F] External SCSI Cable, HD68 to HD68, 80 cm
NS 530-2115 [F] External SCSI Cable, HD68 to HD50, 1.2M

802-3229 SPARCstorage UniPack Hard Drive Replacement
