SPARCstorage MultiPack

5511 5512 5513
2 2.1GB Disks
7200 RPM
4 2.1GB Disks
7200 RPM
6 2.1GB Disks
7200 RPM
5514 5515 5516
2 4.2GB Disks
7200 RPM
4 4.2GB Disks
7200 RPM
6 4.2GB Disks
7200 RPM



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

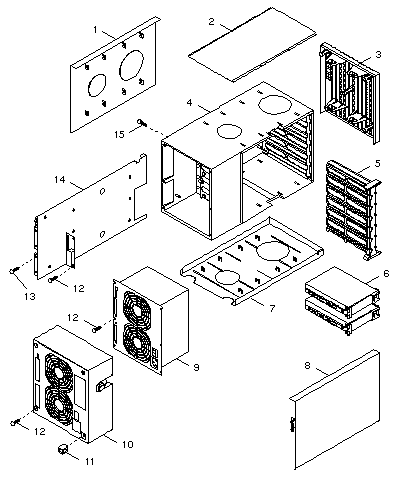

CODE PART # DESCRIPTION
1 330-1957 Side Cover
2 330-1956 Top Cover
3 540-2772 Front Cover Assembly
4 540-3397 Chassis Assembly (replaced 540-2771)
5 540-3400 Spacer Assembly (replaced 540-2748)
6
-
-
540-2730 [F]
370-2040
370-1956
2.1GB 7200 RPM Disk Drive Assembly/FRU
2.1GB Disk Drive, Seagate ST32550WC
2.1GB Disk Drive, IBM DFHS-32160 (disqualified)
6
-
-
540-2936 [F]
370-2808
370-2365 [F]
2.1GB 7200 RPM Disk Drive Assembly/FRU
2.1GB Disk Drive, Quantum VK22J05
2.1GB Disk Drive, Seagate ST32171WC
6
-
-
-
-
540-2938 [F]
370-2367 [F]
370-2809
370-3403
370-3412 [F]
4.2GB 7200 RPM Disk Drive Assembly/FRU
4.2GB Disk Drive, Seagate ST34371WC
4.2GB Disk Drive, Quantum VK45J05
4.2GB Disk Drive, IBM DDRS-34560
4.2GB Disk Drive, Fujitsu MAB3045SC
7 540-2787 Base Assembly
8 540-2751 Door Assembly
9
9
300-1283 [F]
300-1330 [F]
185 Watt Power Supply
185 Watt Power Supply
10 540-2792 Rear Cover Assembly
11 540-2789 Lockbox
12 240-2283 M3 × 8 mm Screw
13 240-2180 #4-40 Jack Screw
14 501-2899 [F] 12-Slot Backplane
15 240-2282 M3 × 14 mm Screw
NS 150-2267 [F] Forced Perfect Terminator, HD68
NS 330-1966 [F] Key
NS 530-1884 [F] External SCSI Cable, HD68 to HD68, 80 cm
NS 540-2749 [F] Cover Kit/FRU with Front, Top, Side, and Door

802-4430 SPARCstorage MultiPack Service Manual

805-1667 SPARCstorage MultiPack Service Manual
