Multi-Disk Pack

547 569 570
4 1.05GB Disks
5400 RPM
2 2.1GB Disks
5400 RPM
4 2.1GB Disks
5400 RPM
738 739 5211 5212
2 2.1GB Disks
7200 RPM
4 2.1GB Disks
7200 RPM
2 4.2GB Disks
5400 RPM
4 4.2GB Disks
5400 RPM



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

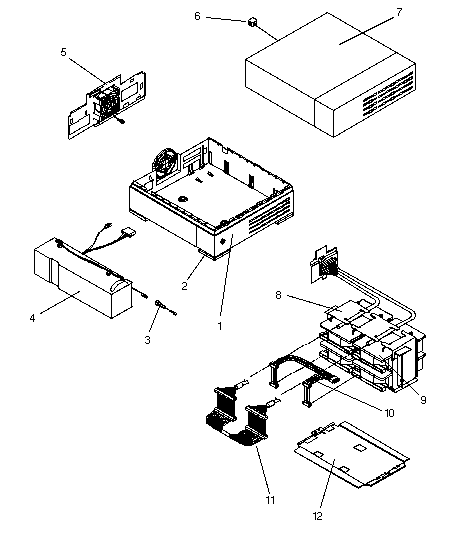

CODE PART # DESCRIPTION
1
2
-
540-2422
330-1214
260-3059 [F]
Base Assembly
Rubber Foot
Sun Logo
3 530-1522 [F] Power Indicator LED Cable
4 300-1080 [F] 60 Watt Power Supply
5
-
540-2424 [F]
540-2466
Fan Assembly
Variable Speed Fan Assembly
6 540-1982 Lockbox Assembly
7 540-2425 Cover Assembly
8
-
-
9
9
9
9
9
9
9
9
9
540-xxxx
340-2848
340-2850
370-1546 [F]
370-1710 [F]
370-1963 [F]
370-1709 [F]
370-1929
370-2070 [F]
370-1957
370-2067 [F]
370-2153 [F]
Disk Drive Superstructure Assembly
Disk Drive Bracket
Superstructure
1.05GB Disk Drive, Seagate ST11200N
1.05GB Disk Drive, Seagate ST31200N
1.05GB Disk Drive, Conner CFP1080S
2.1GB 5400 RPM Disk, Seagate ST12400N
2.1GB 5400 RPM Disk, Conner CFP2105S
2.1GB 5400 RPM Disk, Seagate ST32430N
2.1GB 7200 RPM Disk, IBM DFHS-32160-S2F
2.1GB 7200 RPM Disk, Seagate ST32550N
4.2GB 5400 RPM Disk, Seagate ST15230N
10 530-2024 [F] DC Wire Harness
11 530-2025 [F] Internal SCSI Cable, 880 mm
12 340-2849 [F] Superstructure Mounting Plate
NS 150-1785 [F] Single-Ended Active Terminator, HD50
NS 530-1836 [F] External SCSI Cable, HD50 to HD50, 2.0M
NS 530-1852 [F] External SCSI Cable, HD50 to HD50, 4.0M
NS 801-3422 Multi-Disk Pack Field Service Manual
NS 801-6119 Multi-Disk Pack Installation and Service Guide
