Desktop Storage Module

571
1.3GB Disk



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

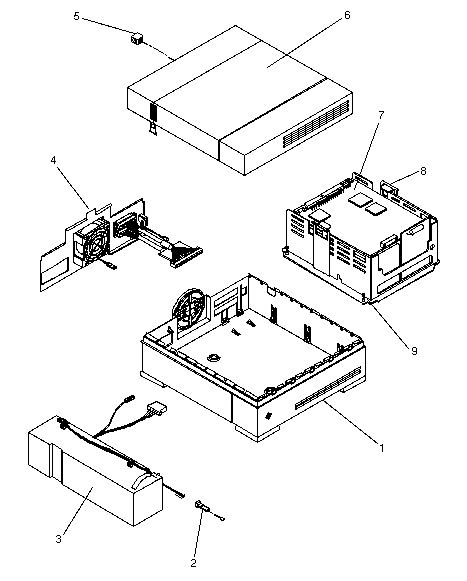

CODE PART # DESCRIPTION
1 540-2139 Base Assembly, Disk Drive Option
2 530-1522 [F] Power Indicator LED Cable
3 300-1080 [F] 60 Watt Power Supply
4
-
-
-
-
-
-
-
-
-
-
-
-
-
-
540-2145 [F]
150-1557 [F]
150-2049 [F]
340-2506
501-1468
530-1790 [F]
530-2117
530-1844 [F]
530-1844 [F]
530-1844 [F]
530-1844 [F]
530-1844 [F]
530-2125
540-2142
540-2142
I/O Bracket Assembly
Address Select Switch (obsolete)
Address Select Switch
I/O Bracket
I/O PCB and Cable Assembly (obsolete)
Address Select Switch Cable (obsolete)
Address Select Switch Cable
Internal SCSI Cable, -01 Rev 50 = 300 mm
Internal SCSI Cable, -01 Rev 51 = 250 mm
Internal SCSI Cable, -02 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev A = 260 mm
Internal SCSI Cable, 308 mm
DC Fan Assembly, 17 CFM (obsolete)
DC Fan Assembly, 14 CFM
5 540-1982 Top Cover Lockbox Assembly
6 540-2141 Top Cover Assembly, Disk Drive Option
7 370-1377 [F] 1.3GB Disk Drive, Seagate 976002-012, PA4E1
8 340-2571 Peripheral Removal Handle (obsolete)
8 540-2263 Peripheral Removal Handle
9 340-2507 Disk Drive Mounting Bracket
NS 150-1785 [F] Single-Ended Active Terminator, HD50
NS 240-1141 [F] #6-32 × 1/4" Disk Drive Mounting Screw
NS 240-1912 #6-32 × 1/4" Disk Drive Mounting Screw (obs)
NS 530-1792 [F] External SCSI Cable, HD50 to DD-50SA, 2.0M
NS 530-1793 [F] External SCSI Cable, HD50 to HD50, 80 cm
NS 530-1829 [F] External SCSI Cable, HD50 to DD-50SA, 1.0M
NS 530-1836 [F] External SCSI Cable, HD50 to HD50, 2.0M
NS 530-1852 [F] External SCSI Cable, HD50 to HD50, 4.0M

800-6219
800-7236
Desktop Storage Module Service Manual
Desktop Storage Module Service Manual
