Desktop Disk Pack

550 552 540
104MB Disk 207MB Disk 424MB Disk



Table Legend
[F] = Field Replaceable Unit (FRU)
NS = Not Shown

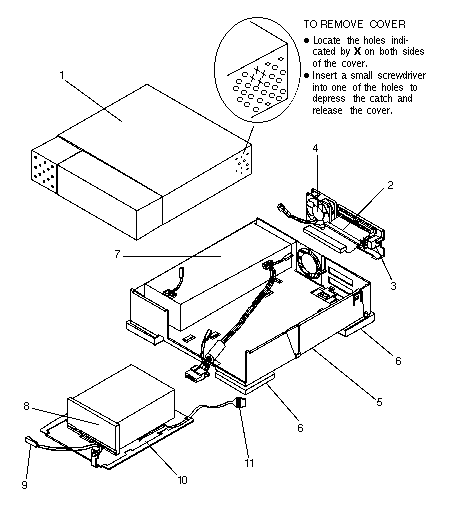

CODE PART # DESCRIPTION
1 540-1777 Disk Drive Cover Assembly
2
3
4
NS
540-1776
150-1338
540-1802 [F]
150-1174 [F]
Fan/SCSI Connector/Address Select Assembly (obs)
Unit Select Switch (obsolete)
Fan Assembly
2A Subminiature Fuse
2
3
3
4
540-1978 [F]
150-1557 [F]
150-2049 [F]
150-1174 [F]
Fan/SCSI Connector/Address Select Assembly
Address Select Switch (obsolete)
Address Select Switch
2A Subminiature Fuse
5
6
540-1773 [F]
330-1214
Base Assembly
Rubber Foot
7 300-1037 35 Watt Power Supply (obsolete) 1
7 300-1090 [F] 35 Watt Power Supply (obsolete)
7 300-1105 [F] 44 Watt Power Supply
8 370-1200 [F] 104MB Disk Drive, Quantum 105S
8 370-1376 [F] 207MB Disk Drive, Quantum 210S 2
8 370-1392 [F] 424MB Disk Drive, Seagate ST1480N
9 530-1522 [F] Power Indicator LED Cable
10 340-1966 [F] Disk Drive Mounting Bracket
11 530-1454 Address Select Switch Cable, 5.25" (obsolete)
11 530-1825 [F] Address Select Switch Cable, 8.5"
NS 150-1346 [F] Single-Ended Terminator, HD50
NS 150-1785 [F] Single-Ended Active Terminator, HD50
NS 530-1434 [F] External SCSI Cable, HD50 to HD50, 45 cm
NS 530-1508 External SCSI Cable, HD50 to HD50, 80 cm
NS 530-1793 [F] External SCSI Cable, HD50 to HD50, 80 cm
NS 530-1836 [F] External SCSI Cable, HD50 to HD50, 2.0
NS 530-1852 [F] External SCSI Cable, HD50 to HD50, 4.0M
NS 800-4895 Desktop Storage Pack Field Service Manual

  1. Power Supply 300-1037 does not have IEC950 or UL1950 approval. Do NOT install 300-1037 into options manufactured after March 1991.
  2. Maxtor Disk Drive 370-1327 is not qualified for use in the Desktop Disk Pack.
