Western Digital WD5000BLHX (500.0GB)
2 1/2" 10000 RPM Serial ATA 3.0Gb/s
Hmm, you are using a very old browser. Click here to go directly to included content.
Option XRB-ST2CF-500G7K
7042764
7042768
542-0410
Aztec
WD Velociraptor
Marlin Bracket FRU
15mm Bracket 541-2123
Pkg FRU 7042769
XRB-ST2CF-500G7K
KMS FRU for X4170 M2
15mm Bracket 541-2123
7042768 + KMS 2.x
Notes
Drive 7042764 was released and added to Assembly 7042768 in January 2012. (E0008697)

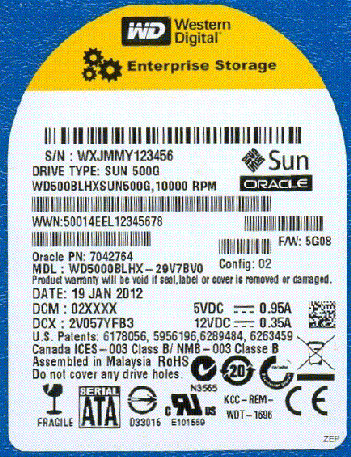

The Western Digital Model Number on the serial number label is WD5000BLHX.
The Sun Model Number on the serial number label is WD500BLHXSUN500G.
The Product in Identify Device data bytes 31-38 is WD500BLHXSUN500G.
