Seagate ST9500530NS (500.0GB)

2 1/2" 7200 RPM   Serial ATA 3.0Gb/s

Option XRA-ST2CF-500G7K
Option XRB-ST2CF-500G7K

390-0468 542-0184 542-0371 542-0410
Dragonfly
Constellation.1
 Marlin Bracket FRU
15mm Bracket 541-4199
XRA-ST2CF-500G7K
 Marlin Bracket FRU
15mm Bracket 541-2123
XRB-ST2CF-500G7K
 KMS FRU for X4170 M2
15mm Bracket 541-2123
542-0371 + KMS 2.x

Notes

  1. Drive 390-0468 and Assembly 542-0184 were released in September 2009. (WO_41472)
  2. 542-0184 was added to 596-7568 in October 2009. (WO_42130)
  3. Assembly 542-0371 with 390-0468 was released in May 2010. (WO_43065)
  4. Assembly 542-0410 with 390-0468 was released in October 2010. (E0000028)
  5. 596-7568 used in the S7310 and S7410 includes 540-7711 or 542-0184.

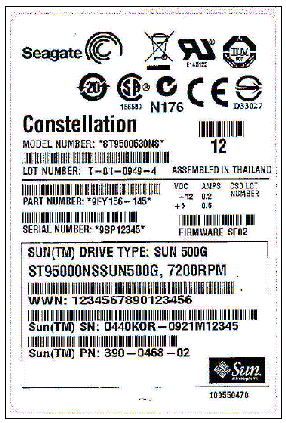

  6. The Seagate Model Number on the serial number label is ST9500530NS.
  7. The Sun Model Number on the serial number label is ST95000NSSUN500G.
  8. The Product in Identify Device data bytes 31-38 is ST95000NSSUN500G.
