Seagate ST39111A (9.1GB)

3 1/2" 7200 RPM Ultra ATA/66

Workstations: Ultra 5, 10

Options 5226 / 5236

370-3693
Barracuda ATA II

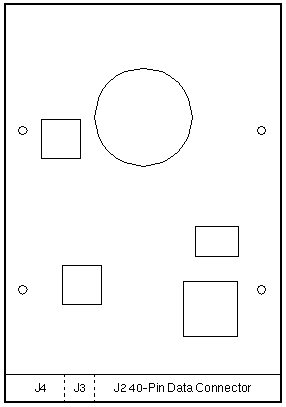

Bottom View

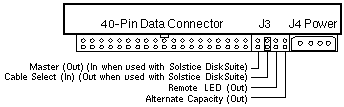

End View

Notes

  1. This drive was added as an alternate source in December 2000.
  2. Either a Floppy or a front Disk Drive can be installed in the Ultra 5.
  3. The Ultra 5 front Disk Mounting Bracket replaces the Floppy Bracket.
  4. The Ultra 5 front Disk Mounting Bracket has no Sun part number.
  5. The Ultra 5 front Disk Mounting Bracket is included with Option 5236.
  6. The Ultra 10 primary/rear drive requires Mounting Bracket 370-3721.

References

  1. Ultra 5/10 Service Manual, 805-0423.
  2. Sun Ultra 5 Workstation Documentation.
  3. Sun Ultra 10 Workstation Documentation.
  4. CD-ROM and Hard Drive Installation Guide, 805-3085.
