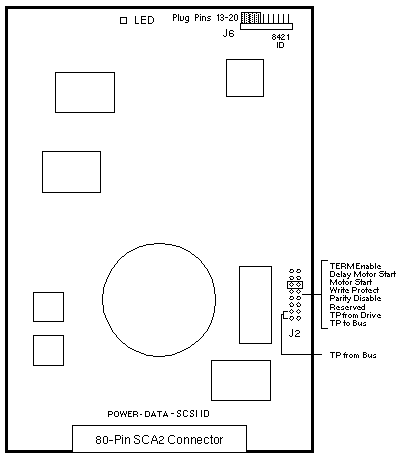

Seagate ST32171WC (2.1GB)

3 1/2" 7200 RPM Single Ended Ultra-1 SCSI

Workstations: SPARCstation 5, 20
Ultra 1, 1E, 2
Ultra 30, 60, 450
Servers: Enterprise 450
Enterprise 150, 3000, 4500, 5500, 6500

Options 765 / 766 / 768 / 769 / 770 / 790 / 791 / 792
5151 / 5152 / 5153 / 5161 / 5511 / 5512 / 5513
6520 / 6590 / 6591 / 6592

370-2365
1" Height
540-2706 540-2699 540-2782 540-2936
SSA FRU
w Bracket 540-2764
SS5/SS20 FRU
w Bracket 540-2570
Jiffy Bracket FRU
w R Bracket 330-1951
w L Bracket 330-1952
Spud Bracket FRU
w 1" Bracket 540-3024

Notes

  1. This drive was added to 540-2699 and 540-2782 in August 2001.
  2. This drive was not shipped from the factory as 540-2699 or 540-2782.

References

  1. 2.1 GB 7200 rpm Disk Drive Documentation.
