IBM DJNA-370910 (9.1GB)

3 1/2" 7200 RPM Ultra ATA/66

Workstations: Ultra 5, 10

Options 5226 / 5236

370-3693
Deskstar 22GXP

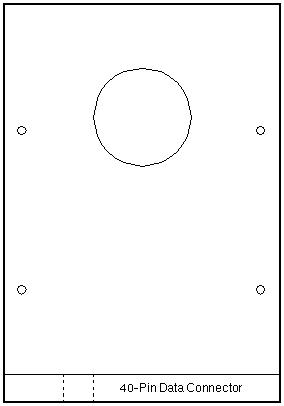

Bottom View

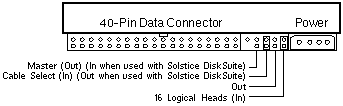

End View

Notes

  1. This drive was added as an alternate source in January 2000.
  2. Either a floppy or a front disk drive can be installed in the Ultra 5.
  3. The Ultra 5 front disk mounting bracket replaces the floppy bracket.
  4. The Ultra 5 front disk mounting bracket has no Sun part number.
  5. The Ultra 5 front disk mounting bracket is included with Option 5236.
  6. The Ultra 10 primary/rear drive requires Mounting Bracket 370-3721.

References

  1. Sun Ultra 5 Workstation Documentation.
  2. Sun Ultra 10 Workstation Documentation.
  3. >CD-ROM and Hard Drive Installation Guide, 805-3085.
