Hitachi HUS156060VLS600 (600.0GB)

3 1/2" 15000 RPM 6Gb/Sec Serial Attached SCSI

Option XTA-SS1NG-600GB15K
Option 7100415

390-0483
1" Height
ViperC
542-0143 542-0428 7012636 7047035
2500 Series FRU
Bracket 540-7216
XTA-SS1NG-600GB15K		 Coral Bracket FRU
Bracket 350-1386
XRB-SS1CR-600G15K		 2500 M2 Series FRU
Bracket 540-7216
Pkg FRU 7012747
Option 7100415		 Stingray Bracket FRU
Bracket 350-1508

Notes

  1. Drive 390-0483 was released in April 2010. (WO_42763)
  2. Drive 390-0483 was added to 542-0143 in April 2010. (WO_42763)
  3. Drive 390-0483 was added to 7012636 in June 2011. (E0004928)
  4. Drive 390-0483 was added to 542-0428 in December 2011. (E0008056)
  5. Assembly 7047035 with 390-0483 was released in March 2012. (E0009444)
  6. Assembly 7047035 requires Disk Shelf 24x 3.5" SAS-2 Chassis 7041264.

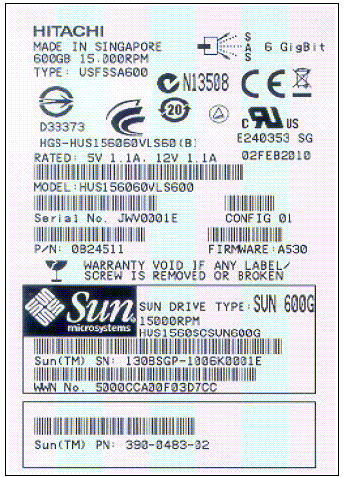

  7. The Hitachi model number on the serial number label is HUS156060VLS600.
  8. The Sun model number on the serial number label is HUS1560SCSUN600G.
  9. The Product Identification in SCSI Inquiry bytes 16-31 is HUS1560SCSUN600G.
