Hitachi HUS156030VLS600 (300.0GB)

3 1/2" 15000 RPM 6Gb/Sec Serial Attached SCSI

Disk Arrays: StorageTek 2510, 2530, 2540

Option XTA-SS1NG-300G15K
Option XRB-SS1CR-300G15K
Option 7100414

390-0481
1" Height
ViperC
540-7219 542-0427
2500 Series FRU
Bracket 540-7216
XTA-SS1NG-300G15K		 Coral Bracket FRU
Bracket 350-1386
XRB-SS1CR-300G15K
7010626 7024415 7047155
2500 M2 Series FRU
Bracket 540-7216
Option 7100414		 Coral Bracket FRU
Bracket 350-1386		 Stingray Bracket FRU
Bracket 350-1508

Notes

  1. Drive 390-0481 was released in April 2010. (WO_42763)
  2. Drive 390-0481 was added to 540-7219 in April 2010. (WO_42763)
  3. Assembly 542-0427 with 390-0481 was released in November 2010. (E0000943)
  4. Drive 390-0481 was added to 7010626 in June 2011. (E0004928)
  5. Assembly 7047155 with 390-0481 was released in March 2012. (E0009444)
  6. Assembly 7047155 requires Disk Shelf 24x 3.5" SAS-2 Chassis 7041264.
  7. Drive 390-0481 was used in 7024415 in April/May 2012. (D0000858)
  8. Drive 390-0481 was added to 7024415 in June 2012. (E0010282)

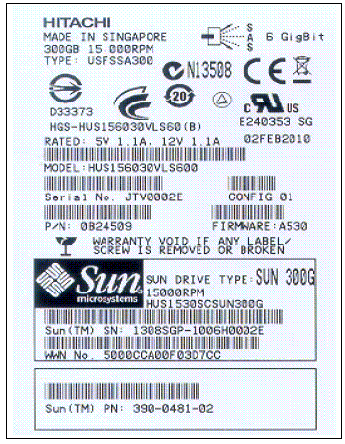

  9. The Hitachi model number on the serial number label is HUS156030VLS600.
  10. The Sun model number on the serial number label is HUS1530SCSUN300G.
  11. The Product Identification in SCSI Inquiry bytes 16-31 is HUS1530SCSUN300G.
