Hitachi HDT722525DLA380 (250.0GB)

3 1/2" 7200 RPM   Serial ATA 3.0Gb/s

Option 8011A
Option XRA-ST1CE-250G7K
Option XRB-ST1CE-250G7K
Option XTA-ST1NC-250G7K
Option XRA-ST1CH-250G7KZ

390-0246 540-6180 540-6485 540-6596
Deskstar T7K250-250
Assembly 540-6180/540-6485
Assembly 540-6596/541-7511
HDT722525DLA380
3511 FRU
1" Bracket
40-Pin Adapter
XTA-ST1NC-250G7K
Spud Bracket FRU
1" Bracket 540-6562
Option 8011A
XRA-ST1CE-250G7K
XRB-ST1CE-250G7K
Spud Bracket FRU
1" Bracket 540-6562
X8078A
390-0295 540-6666 540-7511 541-1468
Deskstar T7K250-250
Assembly 540-6666
Spud Bracket FRU
1" Bracket 540-6562
XRA-ST1CE-250G7K
Spud Bracket FRU
1" Bracket 540-6562
XRC-ST1CE-250G7K
X4500/X4540 FRU
1" Bracket 541-0456
XRA-ST1CH-250G7KZ

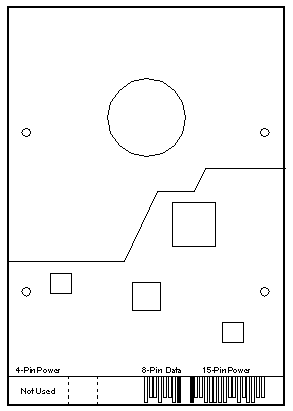

Bottom View

Notes

  1. Drive 390-0246 was released and added to 540-6180 in September 2005. (WO_31796)
  2. Drive 390-0246 was added to 540-6485 in January 2006. (WO_32369)
  3. Drive 390-0246 was added to 540-6596 by the supplier without documentation.
  4. Drive 390-0295 was released and added to 540-6666 in January 2006. (WO_32158)
  5. Assembly 541-1468 with 390-0246 was released in August 2006. (WO_34039)
    Sun Fire X4500 250MB configurations were discontinued in November 2006.
  6. Drive 390-0246 was added to 540-7511 in February 2011. (E0000026)
  7. Drive 390-0246 was removed from 541-1468 in July 2007. (WO_37357)
  8. The Hitachi Model Number on the serial number label is HDT722525DLA380.
  9. The Sun Model Number on the serial number label is HDS7225SBSUN250G.
  10. The Product in Identify Device data bytes 31-38 is HDS7225SBSUN250G.
  11. The Hitachi HDT722525DLA380 may be found in pre-RoHS Ultra 20 or Sun Fire X2100 systems.
