Tyco A187
1448 Watt Power Supply

Servers: Sun Fire V490

300-1632 300-1987
Type A187
AC Input Power Supply		 Type A187
AC Input Power Supply
L

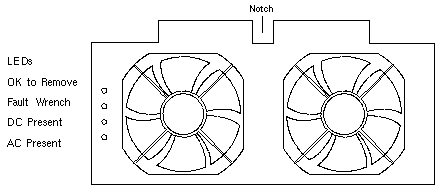

Front View

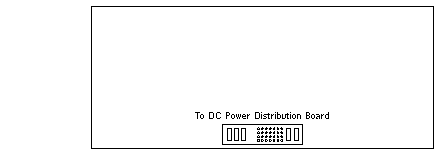

Rear View

AC Input

200-240Vac 47-63Hz 8A
Operating Range 180-264Vrms 47-63Hz

DC Output

+48.0V +5.1V
30.0A 1.5A

Sun Fire V490 Codename: Sebring

Notes

  1. Do Not install 300-1632 in the V480.
  2. Power Supply 300-1632 is labeled 200-240V, 47-63Hz, 8A.
  3. The V490 Chassis is labeled 200-240V, 50-60Hz, 8A (x3), 1600W Max.
  4. The A187 is not compatible with the 2.1GHz V490-BASE-2100-Z chassis.
