Sony APS-88
| |||||||||||||||||||||||||||||||||||||||||||||||||||
| Servers: | Enterprise 150 Netra i 150, nfs 150 |
| Disk Arrays: | SPARCstorage MultiPack StorEdge MultiPack |
| 300-1283 |
|---|

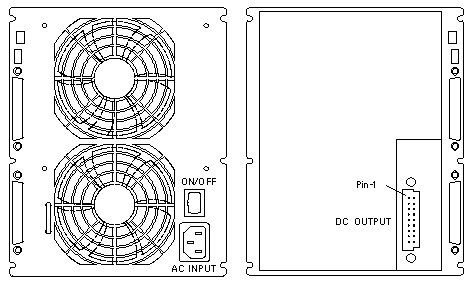

| Type A104 AC Input Power Supply |
DC OUTPUT
| PIN | DESCRIPTION | PIN | DESCRIPTION | |
|---|---|---|---|---|
| 1 | +5Vdc | 10 | +5Vdc | |
| 2 | +5Vdc | 11 | +5Vdc | |
| 3 | Gnd | 12 | Gnd | |
| 4 | Gnd | 13 | Gnd | |
| 5 | +5V pre-charge | 14 | +12V pre-charge | |
| 6 | Gnd | 15 | Gnd | |
| 7 | Gnd | 16 | Gnd | |
| 8 | +12Vdc | 17 | +12Vdc | |
| 9 | +12Vdc | 18 | +12Vdc |
DC Output
| +5V | +12V |
| 15.0A | 12.0A |
| | | |
|
