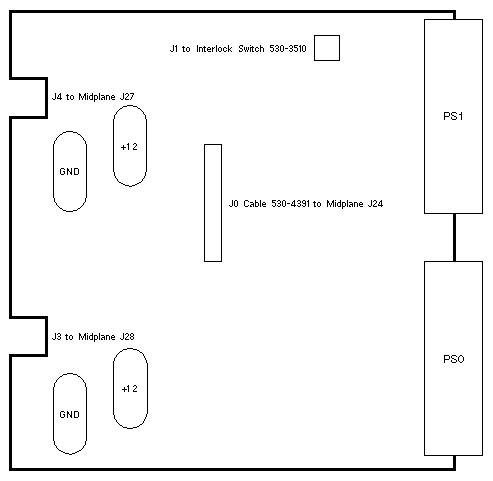

DC Power Distribution Board

511-1449 541-4185
Power Distribution Board
w/o SC Power Connectors		 PDB Assembly
w SC Power Connectors

Notes

  1. Disconnect AC input power before working on the Power Distribution Board.
  2. Remove the Power Distribution Board before removing the Midplane.
  3. Opening the top access cover turns off the power supply DC output.
