Sun Type A153
1700 Watt Power Supply

Servers: Sun Fire 4800

Option 4301

300-1460
Lucent A153
Type A153
AC Input Power Supply
Specification 950-3556		 Tyco A153
Type A153
AC Input Power Supply
Specification 950-3556		 FDK PEX808-30
Type A153
AC Input Power Supply
Specification 950-3556

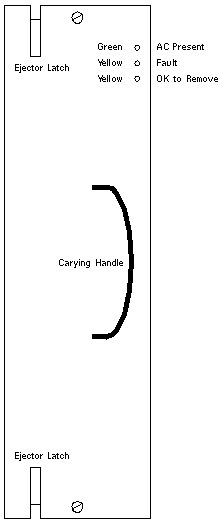

Front View

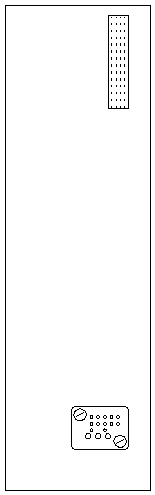

       Rear View

AC Input

200/220-240V 12A/10A 47-63Hz

DC Output

56.2V 28.6A
55V 1.45A

Sun Fire 3800-6800 Codename: Serengeti

Notes

  1. The Sun Fire 4800 shipped with 300-1460.
  2. The Sun Fire 4800 requires 300-1596 when UltraSPARC IV is installed.
  3. Mixing A153 300-1460 and A185 300-1596 is not supported.
  4. Mixing A153 300-1460 with Sun Fire 4900 Fan Trays is not supported.
  5. When replacing A153 or A185 PSUs on 4800/4900 systems, a press pin type handle may break. Please see FAB article 1000873.1
