Service Processor

Servers: Sun Fire X4500

501-7383 541-0597 541-2963
FAB 270-6979
Service Processor
Flash 525-2245
L
Assembly/FRU
501-7160 + 501-7383
L
Assembly/FRU
501-7383 + 511-1045
L

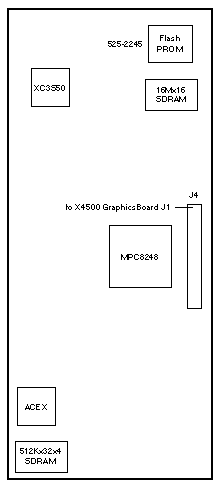

Top Side View

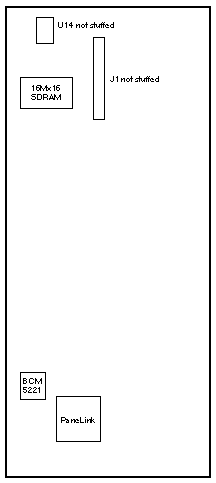

Bottom Side View

Sun Fire X4500 Codename: Thumper

Notes

  1. Install the Graphics and Service Processor Assembly in X4500 Slot 3.
  2. FRU 541-0597 includes Graphics Board 501-7160 and Service Processor 501-7383.
  3. FRU 541-2963 includes Graphics Board 511-1045 and Service Processor 501-7383.

References

  1. Sun Fire X4500/X4540 Server Documentation
