Alarm Card

Telco: Netra 240, 440

370-6127 375-3154 595-7287
Dry Contact Alarm Assy/CRU
375-3154 + Bracket + Cables		 Enchilada19/Alarm Card
Assy 41121200014
L		 Netra 440 CRU
375-3154 + Cables
371-0813 375-3154 594-3325
Dry Contact Alarm Assy/CRU
375-3154 + Bracket + Cables
L		 Enchilada19/Alarm Card
Assy 41121200014
L		 Netra 440 CRU
375-3154 + Cables
L

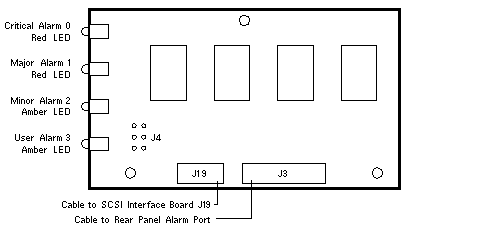

Netra 240 Pre-Production Build

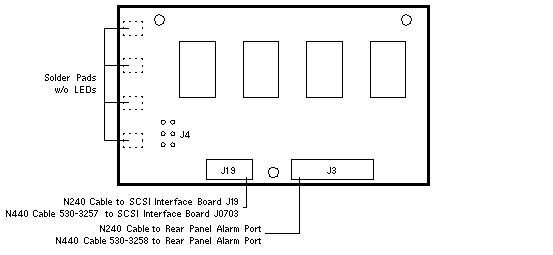

Production Build (Netra 240 and Netra 440)

Notes

  1. Alarm CRU F370-6127 includes the cable to J19 and the rear panel Alarm cable.
  2. Alarm CRU F371-0813 includes the cable to J19 and the rear panel Alarm cable.
  3. Alarm CRU F595-7287 includes input cable 530-3257 and output cable 530-3258.
  4. Alarm CRU F594-3325 includes input cable 530-3693 and output cable 530-3645.

References

  1. Netra 240 Server Documentation.
  2. Sun Advanced Lights Out Manager Software User's Guide for the Netra 240 Server, 817-3174.
  3. Netra 440 Server Documentation.
