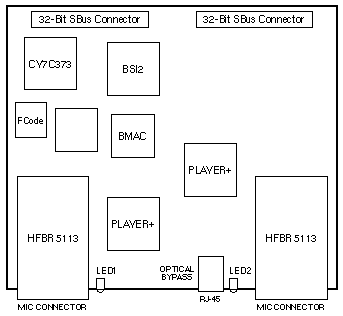

FDDI/S DAS 4.0
| Workstations: |
Sun 4/15, 4/30
SPARCstation 2, 5, 20
Ultra 2 |
| Servers: |
SPARCserver 6x0MP, 1000, SPARCcenter 2000
Enterprise 3x00, 4x00, 5x00, 6x00 |
Option 1024
| 370-2239 |
605-1560 |
370-2716 |
605-1565 |
| NPI 105-0163 |
HW/SW Assy |
NPI 105-0163 |
HW/SW Assy |
 |
|
| LEDs Off |
Driver not loaded |
| Red LED |
Driver loaded
Interfaces not configured (ifconfig down) |
| Amber LED |
Interfaces configured (ifconfig up)
Not connected to active FDDI network |
| Green LED |
Connected to active FDDI network |
|
Notes
- The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
- The FDDI/S is compatible with FDDI 4.0 and 5.0.
- The FDDI/S is not compatible with FDDI 1.0, 2.0, or 3.0.
References
 SunFDDI SBus Adapter 4.0 Documentation
|
