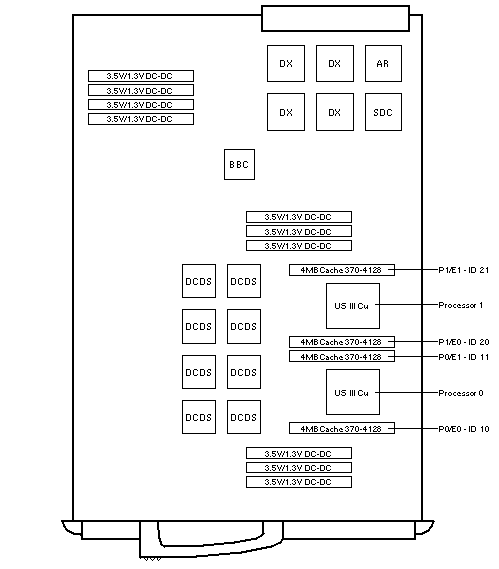

MaxCPU

Servers:

Sun Fire 12K, 15K

Option 4525

501-5396	501-6138	501-6430	501-6701
w/o USIII w/o Cache	900MHz FRU 2× USIII Cu	900MHz FRU 2× USIII Cu =501-6138-04	900MHz FRU 2× USIII Cu

Notes

1. The minimum operating system is Solaris 8 10/01 with SMS 1.2.
2. SMS 1.2 Patches >=112481-02 and >=112633-01 are required.
3. Fan Tray 540-5304 is required. Fan Tray 540-4050 is not supported.
4. All system boards within a system must be at the same firmware revision.
   When replacing a system board, confirm that the firmware version on the replacement matches the other system boards.
5. MaxCPU is not supported when UltraSPARC IV Uniboards are installed in the system.

References

1. Sun Fire 15K/12K Server Documentation.

MaxCPU

Servers:

Sun Fire 12K, 15K

Option 4525-1050A

501-5396	501-6365	501-6465
w/o USIII w/o Cache	1050MHz FRU 2× USIII Cu	1050MHz FRU 2× USIII Cu

Notes

1. The minimum operating system is Solaris 8 02/02 with SMS 1.2.
2. SMS 1.2 Patches >=112481-06 and >=112488-07 are required.
3. Fan Tray 540-5304 is required. Fan Tray 540-4050 is not supported.
4. All system boards within a system must be at the same firmware revision.
   When replacing a system board, confirm that the firmware version on the replacement matches the other system boards.
5. MaxCPU is not supported when UltraSPARC IV Uniboards are installed in the system.

References

1. Sun Fire 15K/12K Server Documentation.

MaxCPU

Servers:

Sun Fire 12K, 15K

Option 4525-1200A

501-5396	501-6466
w/o USIII w/o Cache	1200MHz FRU 2× USIII Cu

Notes

1. The minimum operating system is Solaris 8 02/02 on each domain.
2. SMS 1.2 Patches >=112481-06 and >=112488-07 are required on both system controllers.
3. COD 2.0 requires SMS 1.3 or higher on both controllers.
4. Fan Tray 540-5304 is required. Fan Tray 540-4050 is not supported.
5. All system boards within a system must be at the same firmware revision.
   When replacing a system board, confirm that the firmware version on the replacement matches the other system boards.
6. MaxCPU is not supported when UltraSPARC IV Uniboards are installed in the system.

References

1. Sun Fire 15K/12K Server Documentation.
