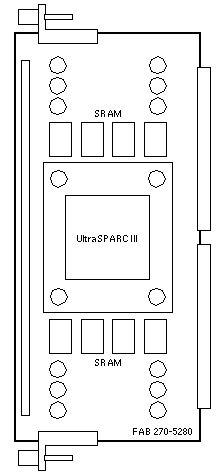

900MHz UltraSPARC III Module

Workstations: Sun Blade 1000

Option 7000

501-5770
8MB Cache Cheetah

Notes

  1. The minimum Operating System is Solaris 8 10/00 with the following patches:
    109888-05 or later
    110460-01 or later
    111292-03 or later (OBP 4.2.4)
    See FIN I0697-1 for more information.
  2. OBP 4.4 Version 6 adds support for Patches 109888 and 110460.
  3. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  4. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  5. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  6. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  7. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. UltraSPARC III CPU Module Installation Guide, 806-4280.



900MHz UltraSPARC III Module

Workstations: Sun Blade 1000

Option 7000

501-6197
8MB Cache Cheetah

Notes

  1. The minimum Operating System is Solaris 8 10/00 with the following patches:
    109888-05 or later
    110460-01 or later
    111292-03 or later (OBP 4.2.4)
    See FIN I0697-1 for more information.
  2. OBP 4.4 Version 6 adds support for Patches 109888 and 110460.
  3. This module is not qualified for use in the Sun Fire 280R.
  4. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  5. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  6. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  7. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  8. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. UltraSPARC III CPU Module Installation Guide, 806-4280.



900MHz UltraSPARC III Module

Workstations: Sun Blade 1000

501-6286
8MB Cache Cheetah

Notes

  1. The minimum Operating System is Solaris 8 10/00 with the following patches:
    109888-05 or later
    110460-01 or later
    111292-03 or later (OBP 4.2.4)
    See FIN I0697-1 for more information.
  2. OBP 4.4 Version 6 adds support for Patches 109888 and 110460.
  3. This module is not qualified for use in the Sun Fire 280R.
  4. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  5. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  6. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  7. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  8. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. UltraSPARC III CPU Module Installation Guide, 806-4280.
