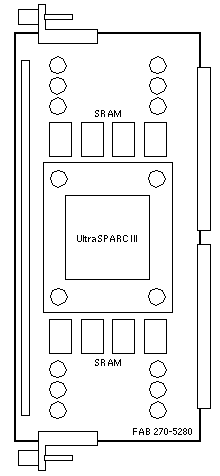

750MHz UltraSPARC III Module

Workstations: Sun Blade 1000
Servers: Sun Fire 280R
Telco: Netra 20

Option 6990

501-5675
8MB Cache Cheetah

Notes

  1. The minimum Operating System is Solaris 8 10/00.
  2. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  3. Mixing module speeds in the Sun Fire 280R is not supported.
  4. Mixing module speeds in the Netra 20 is not supported.
  5. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  6. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  7. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  8. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. Sun Fire 280R Server Documentation.
  3. UltraSPARC III CPU Module Installation Guide, 806-4280.



750MHz UltraSPARC III Module

Workstations: Sun Blade 1000

501-5895
8MB Cache Cheetah

Notes

  1. The minimum Operating System is Solaris 8 10/00.
  2. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  3. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. UltraSPARC III CPU Module Installation Guide, 806-4280.



750MHz UltraSPARC III Module

Workstations: Sun Blade 1000

501-5969
8MB Cache Cheetah Lite

Notes

  1. The minimum Operating System is Solaris 8 10/00.
  2. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  3. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. UltraSPARC III CPU Module Installation Guide, 806-4280.



750MHz UltraSPARC III Module

Workstations: Sun Blade 1000
Servers: Sun Fire 280R

501-5988
8MB Cache Cheetah Lite

Notes

  1. The minimum Operating System is Solaris 8 10/00.
  2. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  3. Mixing module speeds in the Sun Fire 280R is not supported.
  4. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  5. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  6. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  7. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. Sun Fire 280R Server Documentation.
  3. UltraSPARC III CPU Module Installation Guide, 806-4280.



750MHz UltraSPARC III Module

Workstations: Sun Blade 1000

501-6196
8MB Cache Cheetah

Notes

  1. The minimum Operating System is Solaris 8 10/00.
  2. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  3. Mixing UltraSPARC III and UltraSPARC III Cu is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. UltraSPARC III CPU Module Installation Guide, 806-4280.
