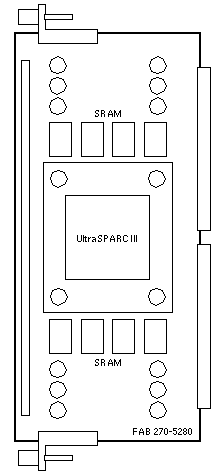

600MHz UltraSPARC III Module

Workstations: Sun Blade 1000

Option 6898

501-4999
4MB Cache Cheetah

Notes

  1. The minimum Operating System is Solaris 8 10/00.
  2. The Sun Blade 1000 System Board supports mixed module speeds if the UltraSPARC III frequency is a whole number multiple of 150MHz.
  3. If only one CPU module is installed, it must be in Slot 0.
  4. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  5. A torque tool is included with systems that use this module.
  6. This module shipped in Sun Fire 280R part numbers 600-7035 and 600-7070.

References

  1. Sun Blade 1000 Workstation Documentation.
  2. UltraSPARC III CPU Module Installation Guide, 806-4280.
