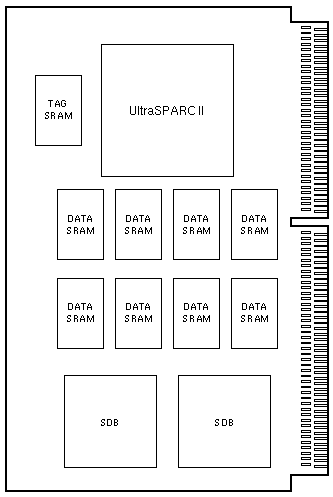

250MHz UltraSPARC II Module

Workstations: Ultra 30
Servers: Enterprise 450
Telco: Netra t1100

Option 2230

501-4278
1MB Cache Blackbird

Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. This module is not supported in the Ultra 2.
  3. The 501-4278 was not shipped in Enterprise 250 systems.
  4. The 250MHz module was not shipped in Ultra 450 Workstations.
  5. Mixing module speeds is not supported.
  6. The Enterprise 450 requires DC-DC Converter 300-1322.
  7. Option X2230A includes a Module and DC-DC Converter 300-1322.

Reference

Ultra Enterprise 450 UltraSPARC II Module X-Option, 805-1704.

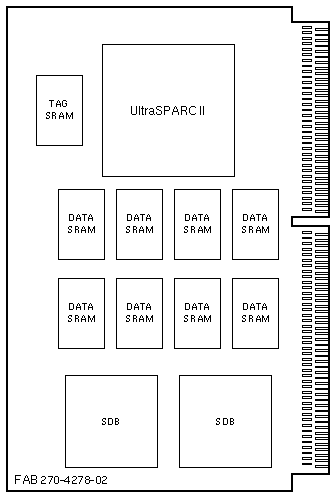

250MHz UltraSPARC II Module

Workstations: Ultra 30
Servers: Enterprise 250, 450
Telco: Netra t1100

Options 1190 / 2230

501-4857
1MB Cache Blackbird

Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. This module is not supported in the Ultra 2.
  3. Mixing module speeds is not supported.
  4. The 250MHz module was not shipped in Ultra 450 Workstations.
  5. The Enterprise 450 requires DC-DC Converter 300-1322.
  6. Option X2230A includes a Module and a DC-DC Converter 300-1322.

Reference

Ultra Enterprise 450 UltraSPARC II Module X-Option, 805-1704.
