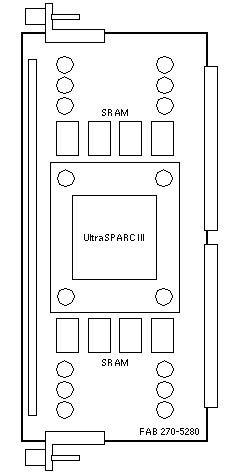

1200MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000
Servers: Sun Fire 280R
Telco: Netra 20

Option 7310

501-6485 501-6745
8MB Cache Cheetah++ Lite
Option 7310A 596-3954
Option X7310A 595-6892-01
8MB Cache Cheetah++ Lite
Option 7310A 596-4342
501-6485-01 screened
for processor flatness

Notes

  1. The minimum OS is Solaris 8 2/02 or Solaris 9 12/02.
  2. The minimum recommended OBP is 4.5 Version 21.
    OBP 4.5 Version 19 will work on Sun Fire 280R. See FIN I0973-1.
  3. Mixing module speeds is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.
  7. Netra 20 requires LomLite2 Alarm Module 501-6543.
  8. Sun Fire 280R requires Fan Tray 540-5088, Option 9820.
  9. Modules 501-6485, 501-6745, 501-6690, and 501-6750 use the same components.
  10. Safari bus frequency margining during hot functional testing is at 152.5MHz.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Workstation Documentation.



1200MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000
Servers: Sun Fire 280R
Telco: Netra 20

Option 7310

501-6690 501-6750
8MB Cache Cheetah++ Lite
Option X7310A 595-7139
Rework for field upgrades only
8MB Cache Cheetah++ Lite
Option X7310A 595-7221
501-6690-01 screened
for processor flatness

Notes

  1. The minimum OS is Solaris 8 2/02 or Solaris 9 12/02.
  2. The minimum recommended OBP is 4.5 Version 21.
    OBP 4.5 Version 19 will work on Sun Fire 280R. See FIN I0973-1.
  3. Mixing module speeds is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.
  7. Netra 20 requires LomLite2 Alarm Module 501-6543.
  8. Sun Fire 280R requires Fan Tray 540-5088, Option 9820.
  9. Modules 501-6485, 501-6745, 501-6690, and 501-6750 use the same components.
  10. Safari bus frequency margining during hot functional testing is at 155.0MHz.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Workstation Documentation.



1200MHz UltraSPARC III Cu Module

Workstations: Sun Blade 2000
Servers: Sun Fire 280R
Telco: Netra 20

501-6805
8MB Cache Cheetah++ Lite
screened for processor flatness

Notes

  1. The minimum OS is Solaris 8 12/02 or Solaris 9 12/02.
  2. The minimum OBP is 4.5 Version 19.
  3. Mixing module speeds is not supported.
  4. If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
  5. Use torque tool 340-6091 or 340-6395 to install this module.
    Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
  6. A torque tool is included with systems that use this module.
  7. Netra 20 requires LomLite2 Alarm Module 501-6543.
  8. Sun Fire 280R requires Fan Tray 540-5088, Option 9820.
  9. The 501-6805 was released and structured by WO_28067 in December 2003.
  10. Safari bus frequency margining during hot functional testing is at 152.5MHz.

Reference

  1. Sun Blade 1000 and Sun Blade 2000 Workstation Documentation.
