21-Slot cPSB Centerplane

Netra CT 820

Codename: Sanibel21

370-6175

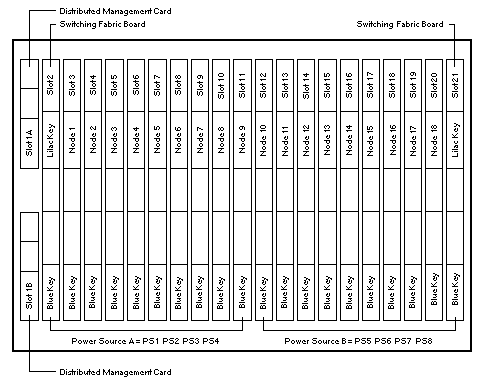

Centerplane Assembly

MALE cPSB CONNECTOR KEYS

Brilliant Blue Code 1567
Blue Lilac Code 1356

Notes

  1. The DMC in Slot 1A connects to the Switching Fabric Board in Slot 2.
  2. The DMC in Slot 1B connects to the Switching Fabric Board in Slot 21.
  3. Slot 1A and 1B receive power from Power Source A and B.
  4. The three Fan Trays receive power from Power Source A and B.

Reference

  1. Netra CT 820 Server Documentation.
