2-Slot SAS Backplane

501-7843

T6320 Views
T6340 Views
X6270 Views
X6270 M2 Views
X6270 M3 Views
Netra Blade X3-2B / Netra X6270 M3 Views

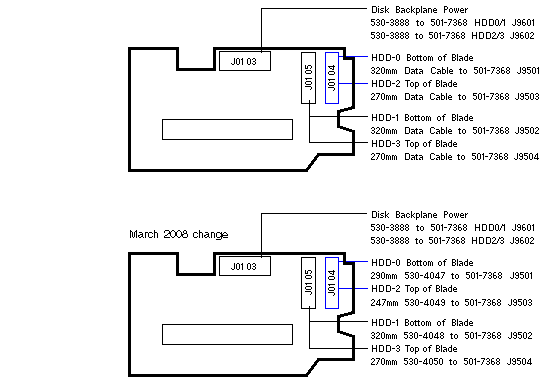

Internal T6320 Views

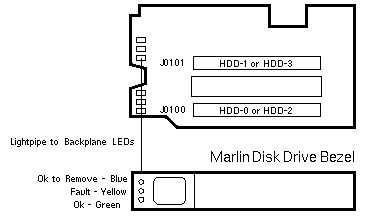

External T6320 View

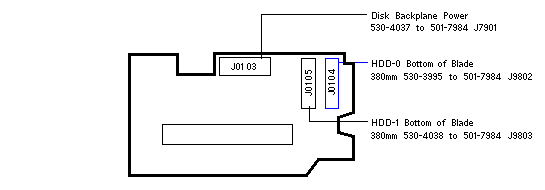

Internal T6340 View

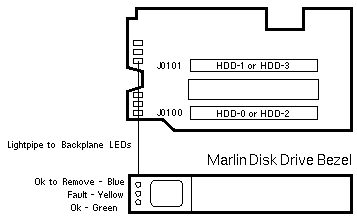

External T6340 View

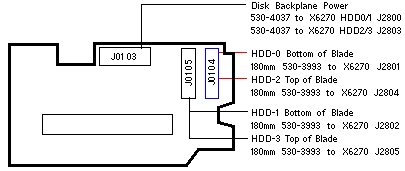

Internal X6270 View

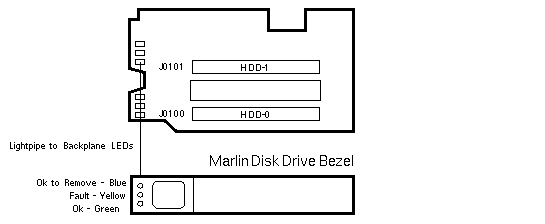

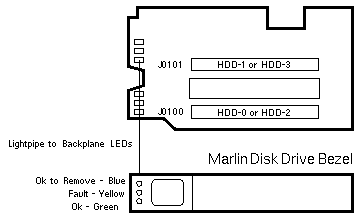

External X6270 View

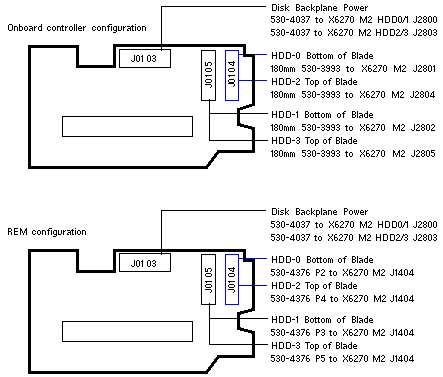

Internal X6270 M2 View



External X6270 M2 View

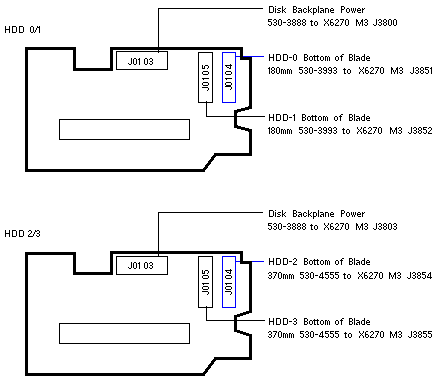

Internal X6270 M3 View



External X6270 M3 View



Internal Netra Blade X3-2B / Netra X6270 M3 View

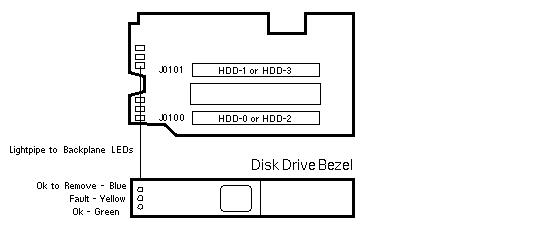

External Netra Blade X3-2B / Netra X6270 M3 View



Sun Blade T6320 Notes

  1. Disk Backplane 501-7843 is not a Sun Blade T6320 FRU.
  2. SAS Cables 530-3931 and 530-3932 are not FRUs.
  3. SAS Cables 530-4047, 530-4048, 530-4049, and 530-4050 are not FRUs.
  4. Cable 530-3931 is one blue and one black 320mm cable for HDD0 and HDD1.
    Cable 530-3931 was replaced by 530-4047 and 530-4048 in March 2008. (WO_38757)
  5. Cable 530-3932 is one blue and one black 270mm cable for HDD2 and HDD3.
    Cable 530-3932 was replaced by 530-4049 and 530-4050 in March 2008. (WO_38757)
  6. Sun Blade T6300 Cable Kit 541-2491 includes Backplane Power Cable 530-3888.

Sun Blade T6340 Notes

  1. Disk Backplane 501-7843 is not a Sun Blade T6340 or Netra T6340 FRU.
  2. Cables 530-3995 and 530-4038 are not FRUs.

Sun Blade X6270 Notes

  1. Disk Backplane 501-7843 is not a Sun Blade X6270 FRU.
  2. Cable 530-4037 is not available as a FRU.

Sun Blade X6270 M2 Notes

  1. Disk Backplane 501-7843 is not a Sun Blade X6270 M2 FRU.
  2. ATO Option 4859A includes four 530-3993 SATA data cables.
  3. ATO Option 4860A includes one 530-4376 SAS data cable.
  4. Cable Kit 542-0376 includes four 530-3993 and one 530-4376.
  5. Cable 530-4376 has one SFF-8087 to four SATA connectors.
  6. Onboard controller configurations use cable 530-3993.
  7. REM configurations use cable 530-4376.

Sun Blade X6270 M3 and Netra X6270 M3 Notes

  1. Disk Backplane 501-7843 is not a Sun Blade X6270 M3 or Netra X6270 M3 CRU/FRU.
  2. The Disk Backplane can not be removed without removing the blade from the tray.
  3. Cable Kit 7048611 includes one 530-3888, one 530-3993, and one 530-4555.
