10-Slot Centerplane

Servers: Sun Blade 8000


501-6971 541-0823 541-0821
Centerplane
L		 Centerplane Assembly
Centerplane + Busbar
Upper/Lower Brackets
Cable 530-3393 (×3)
L		 I/O Assembly/FRU
Centerplane Assembly
Cables 530-3390 + 530-3488
IEC320 C20 Line Filter 371-0308
Rear Interface Module 541-0419
L

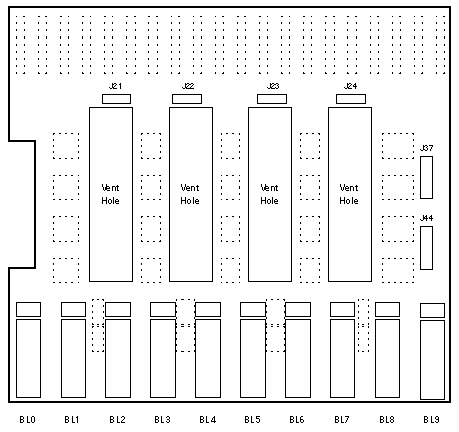

Front View

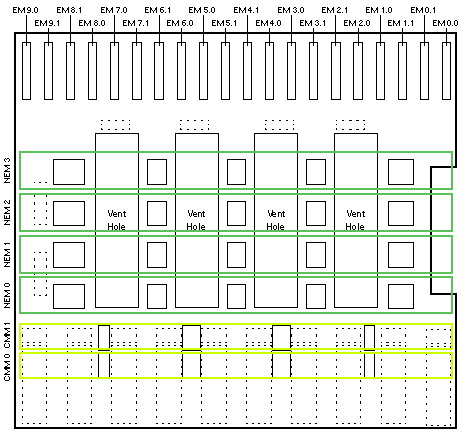

Rear View

Sun Blade 8000 Codename: Andromeda

Notes

  1. J21 connects to AC-PS0 and AC-PS3 with cables 530-3488 and 530-3393.
  2. J22 connects to the Rear Interface Module with cable 530-3390.
  3. J23 connects to AC-PS1 and AC-PS4 with cables 530-3488 and 530-3393.
  4. J24 connects to AC-PS2 and AC-PS5 with cables 530-3488 and 530-3393.
  5. J37 connects to the Front Fan Tray with cable 530-3391.
  6. J44 connects to the Rear Fan Module with cable 530-3392.

References

  1. Sun Blade 8000 P Modular System Documentation.
