2-Slot Midplane

<a href="../../Systems/SupportHeaders/BKPL_ODA_2Slot_Midpln.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

511-1448

Midplane

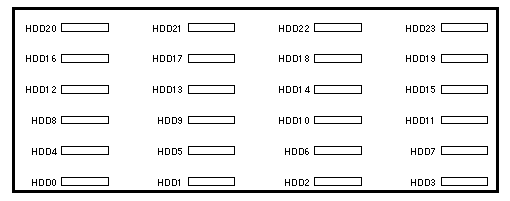

Front View

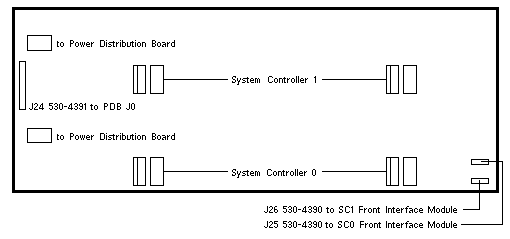

Rear View

Notes

Disconnect AC input power before working on the Midplane.
Remove the Power Distribution Board before removing the Midplane.
Opening the top access cover turns off the power supply DC output.
