Frame Manager

Servers: Sun Fire 6800, E6900
Cabinets: Sun Fire Cabinet

540-3883 540-6014
FRU Assembly
Deep Purple
F6800 + SF-CAB
FRU Assembly
Bright Purple
E6900 + SFE-CAB
501-5258 501-6348

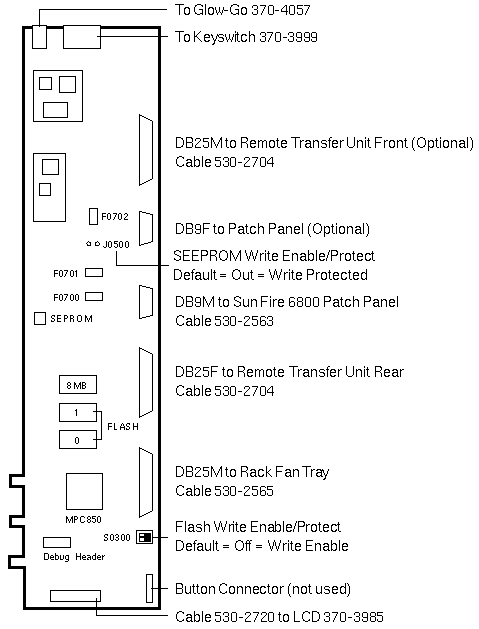

Frame Manager Board
<=540-3883-02
Frame Manager Board
>=540-3883-03
540-6014

Notes

  1. The Rack Fan Tray abbreviation is RFT.
  2. The Redundant Transfer Unit abbreviation is RTU.
  3. Chassis labels include the abbreviated name and number.

References

  1. Frame Manager Product Note, 816-1034.
  2. Sun Fire Systems Service Manual, 805-7363.
  3. Sun Fire 4810/4800/3800 Cabinet Mounting Guide, 806-6781.
  4. Sun Fire E4900/E6900 Systems Service Manual, 817-4120.
