240 Volt AC Power Sequencer

300-1264
Sherwood Enterprises
Outlet Side

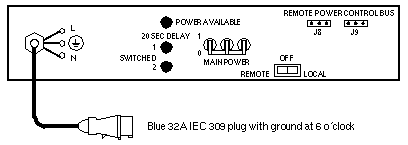

Control Side

Notes

  1. Requires a Blue, IEC 309, 2-Pole, 3-Wire, 32A, 250V AC receptacle.
  2. Any conversion to the Data Center Cabinet, including replacement of the AC Power Plug or AC Power Sequencer, voids all safety agency approvals.
  3. The Switched 2 output comes on after a 20-second delay.
  4. The 300-1264 replaced 370-1156-03 in February 1996.

References

  1. Sun 56-inch Expansion Cabinet Installation Manual, 800-5936.
  2. Sun 56-inch Expansion Cabinet Service Manual, 800-6371.
