230 Volt AC Power Sequencer

370-1155-02
Sherwood Enterprises

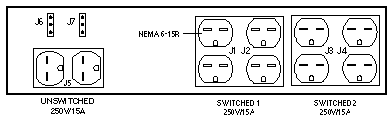

Outlet Side

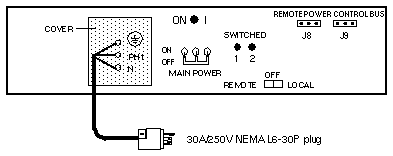

Control Side

Notes

  1. Requires AC outlet NEMA L6-30R, 30A, 250V.
  2. Any conversion to the Data Center Cabinet, including replacement of the AC Power Plug or AC Power Sequencer, voids all safety agency approvals.
  3. The Switched 2 output comes on after a 20-second delay.

References

  1. Sun Full-Height Rack System Installation Manual, 800-1677.
  2. Sun Rackmountable Fileservers Installation Manual, 800-1676.
  3. Sun 900 Mbyte Disk Drive Installation Manual, 800-1036.
  4. Sun 56-inch Data Center Cabinet and Data Center Expansion Cabinet Installation Manual, 800-3242.
  5. Sun 56-inch Expansion Cabinet Installation Manual, 800-5936.
  6. Sun 56-inch Expansion Cabinet Service Manual, 800-6371.
