AC Distribution Unit Power Requirements

Servers: SPARCcenter 2000, 2000E

300-1099 300-1100

Operating Range

Nominal Voltage: 208, 220, 230, or 240 Volts AC
Operating Voltage: Single Phase 180-264 Volts AC
Frequency: 48-63 Hz
Current: 24 A maximum

AC Power Plug

The 230VAC power plug is a NEMA L6-30P. The 240VAC power plug is a Blue, 32A, IEC 309, with Ground at the 6-hour position.

AC Power Cord

The 230VAC Power Sequencer uses a 12 AWG Type SJO flexible cord rated at 25A when connected to utilization equipment with 2 current carrying conductors. Refer to Article 400-5 of the US National Electrical Code.

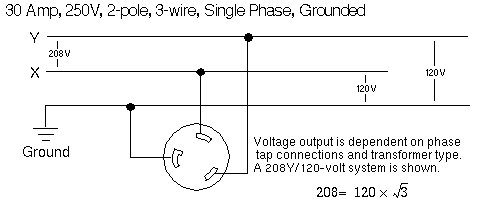

NEMA L6-30R / ANSI C73.75 230 Volt Power Receptacle

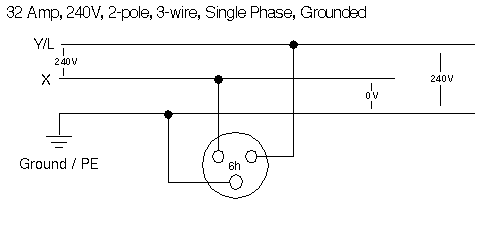

IEC 309 240 Volt Power Receptacle
