240 Volt AC Power Sequencer

370-1126 370-1156
Pulizzi Engineering
PC874
Pulizzi Engineering
PC874

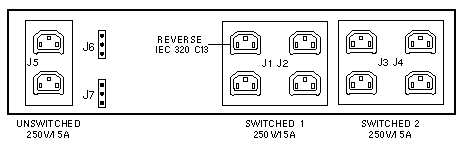

Outlet Side

Control Side

Notes

  1. Requires a Blue, IEC 309, 2-Pole, 3-Wire, 32A, 250V AC receptacle.
  2. Any conversion to the Data Center Cabinet, including replacement of the AC Power Plug or AC Power Sequencer, voids all safety agency approvals.
  3. The AC Power Cord is internally wired to the AC Line Filter.
  4. The Switched 2 output of 370-1126 comes on after a 5-second delay.
  5. The Switched 2 output of 370-1156 comes on after a 20-second delay.

References

  1. Sun Full-Height Rack System Installation Manual, 800-1677.
  2. Sun Rackmountable Fileservers Installation Manual, 800-1676.
  3. Sun 900 Mbyte Disk Drive Installation Manual, 800-1036.
  4. Sun 56-inch Data Center Cabinet and Data Center Expansion Cabinet Installation Manual, 800-3242.
  5. Sun 56-inch Expansion Cabinet Installation Manual, 800-5936.
  6. Sun 56-inch Expansion Cabinet Service Manual, 800-6371.
