AC Power Sequencer Power Requirements

Servers: Enterprise E5x00, E6x00, 10000

Options 956 / 6513

300-1290 300-1403

Operating Range

Nominal Voltage: 208, 220, 230, or 240 Volts AC
Operating Voltage: Single Phase 180-264 Volts AC
Frequency: 48-63 Hz
Current: 24 A maximum

AC Input Power Plug

U.S. power cord 530-2197 uses a NEMA L6-30P plug.
International power cord 530-2266 uses a Blue, IEC 309, 2-Pole, 3-Wire, 32 Amp plug, with Ground at the 6-hour position.

AC Output Connectors

Connector J1 has an IEC 320 C19 receptacle. Connectors J2 and J5 - J12 have 3-circuit AMP Mate-N-Lok receptacles.

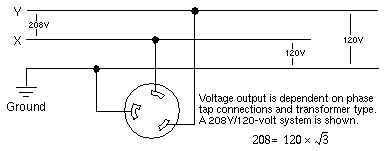

NEMA L6-30R / ANSI C73.75 230 Volt Power Receptacle

30 Amp, 250V, 2-pole, 3-wire, Single Phase, Grounded

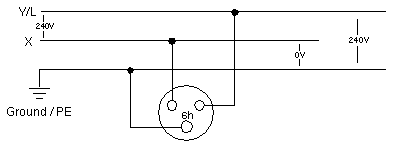

IEC 309 240 Volt Power Receptacle

32 Amp, 240V, 2-pole, 3-wire, Single Phase, Grounded
