Introduction

This section discusses the following:

• The StorEdge L8 product description
• The autoloader features
• The switches and indicators on the autoloader panel

Description

The StorEdge L8 autoloader provides automated data storage, archival, backup, and retrieval for a range of systems from desktop workstations to small office local area networks to storage area networks. The standard product is designed for use in a general office environment and has a fully finished appearance for use on a desktop; however, it can be installed easily into a rack.

The autoloader contains one drive and 8 fixed storage locations for tape media. There is a single slot located on the front of the autoloader for inserting and removing tapes. A carousel mechanism is used to move tape within the autoloader, and a robotic picker is used to either move a tape from the carousel to the drive or from the carousel to the media access door. There is an Operator Panel located on the front of the unit for operator interface.

It is compatible with most operating systems and environments that support the SCSI interface, but requires either direct support from the operating system or a compatible backup application to take full advantage of its many features. For specific information about your autoloader, including autoloader capacity, drive information, and physical size, see Technical Specifications.

Features

Your autoloader has the following features:

• Multi-function Operator Panel—The StorEdge L8 autoloader Operator Panel consists of four LEDs, four buttons, and a 2-line by 16-character liquid crystal display (LCD) screen. The Operator Panel provides everything you need to monitor autoloader status and to control all of its functions.
• Cleaning Cartridge—Although the cleaning cartridge can occupy a cartridge storage slot in the autoloader (facilitating automated cleaning cycles), manual insertion of a cleaning cartridge is permitted by importing the cleaning cartridge through the Operator Panel.
• Cartridge Pre-Check—Whenever you power up your autoloader, it will scan the cartridge storage slots and the drive and then build a log of valid cartridge locations.
• Reverse Cartridge Protection—The import/export cartridge storage slot is designed to prevent the cartridges from being inserted incorrectly.
• Built-in Diagnostics—Your autoloader includes diagnostic firmware that tells you when drive head cleaning is required, reports diagnostic results, and drive operating status.
• Barcode Ready—The available barcode reader option can deliver instant media verification and inventory.
• Rackmount Ready—The available rackmount kit enables you to rackmount your autoloader in 2U of rack space.

Switches and Indicators

Use Figure 1 and Figure 2 to help you identify the different autoloader operating components.

Front Panel

The front panel of the autoloader is shown in Figure 1.

Figure 1 Autoloader Front Panel

Back Panel

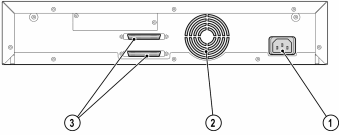

The back panel of the autoloader is shown in Figure 2.

Figure 2 Autoloader Back Panel
