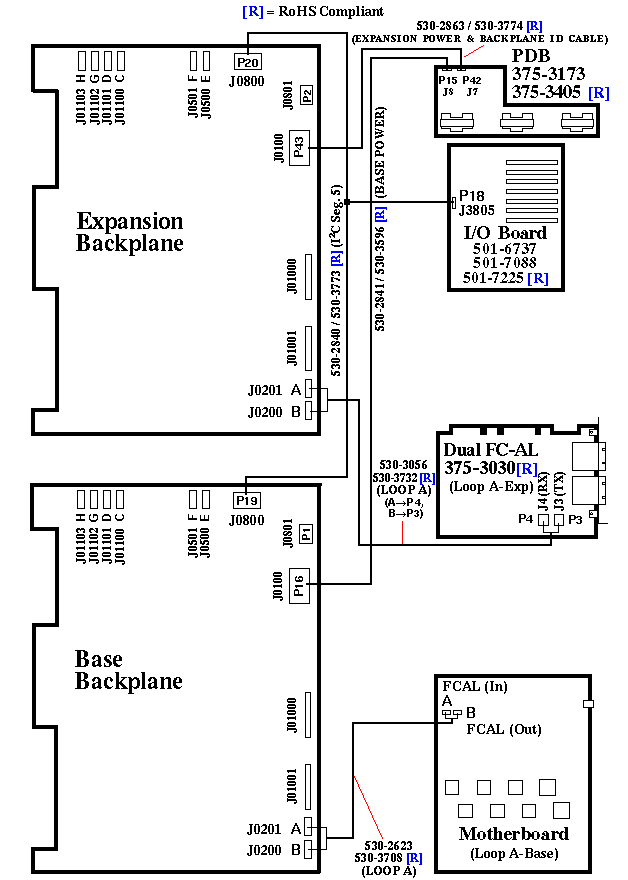

Split FCAL Backplanes with Single Loop (A)


Expansion Backplane Base Backplane PDB I/O Board Dual FC Host Adapter Motherboard
NOTE: Right click and select "View Image" to get just the image for printing and saving.





[Back to Top]



Cable
Connection Points
Base Power Cable
Part # 530-2841
Part # 530-3596 [RoHS]
Origin: P15 to PDB-J8
Destination: P16 to Base Backplane-J0100
I2C Segment 5 Cable (Part 1)
Part # 530-2840
Part # 530-3773 [RoHS]
Origin: P18 to I/O Board-J3805
Destination: P19 to Base Backplane-J0800
FCAL (Motherboard to Base Backplane)
Loop A Cable
Part # 530-2623
Part # 530-3708 [RoHS]
Origin: On Motherboard - A to FCAL(IN), B to FCAL(OUT)
Destination: On Base Backplane - A to J0201, B to J0200
Expansion Power Cable /
  Backplane ID Cable
Part # 530-2863
Part # 530-3774 [RoHS]

Origin (Expansion Power Cable): P42 to PDB-J7
Destination (Expansion Power Cable): P43 to Expansion Backplane-J0100

Origin (Backplane ID Cable): Not Connected
Destination (Backplane ID Cable): Not Connected

I2C Segment 5 Cable (Part 2)
Part # 530-2840
Part # 530-3773 [RoHS]
Origin: P18 to I/O Board-J3805
Destination: P20 to Expansion Backplane-J0800
FCAL (X6727A (375-3030)
card to Expansion Backplane)
Loop A Cable
Part # 530-3056
Part # 530-3732 [RoHS]
Origin: On card - P3 to J4(TX); P4 to J4(RX)
Destination: On Expansion Backplane-C to J0200, D to J0201
