FC-AL Disk Backplane with Single Loop (A)


PCI I/O Riser Board FC-AL Disk Backplane Centerplane
NOTE: Right click and select "View Image" to get just the image for printing and saving.



[Back to Top]

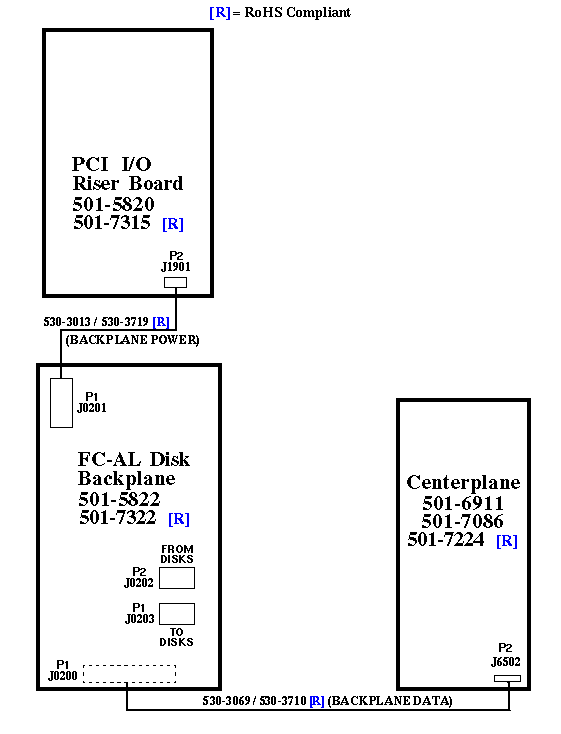

Cable Connection Points
FCAL Power Cable
Part # 530-3013
Part # 530-3719 [RoHS]
Origin: P2 on PCI Riser Board at J1901
Destination: P1 on FCAL Backplane at J0201
Note: Cable must be routed under Fan Tray 1.
FCAL Data Cable
Part # 530-3069
Part # 530-3710 [RoHS]
Origin: P2 on Centerplane at J6502
Destination: P1 on FCAL Backplane at J0200
Note: Route cable above the system control switch/power button cable.
